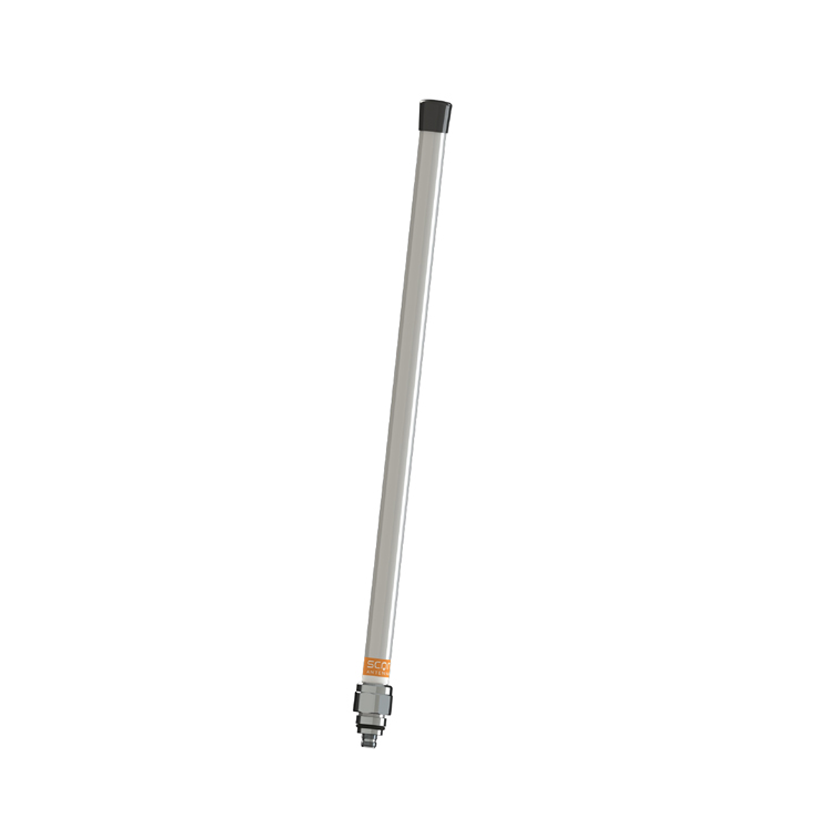

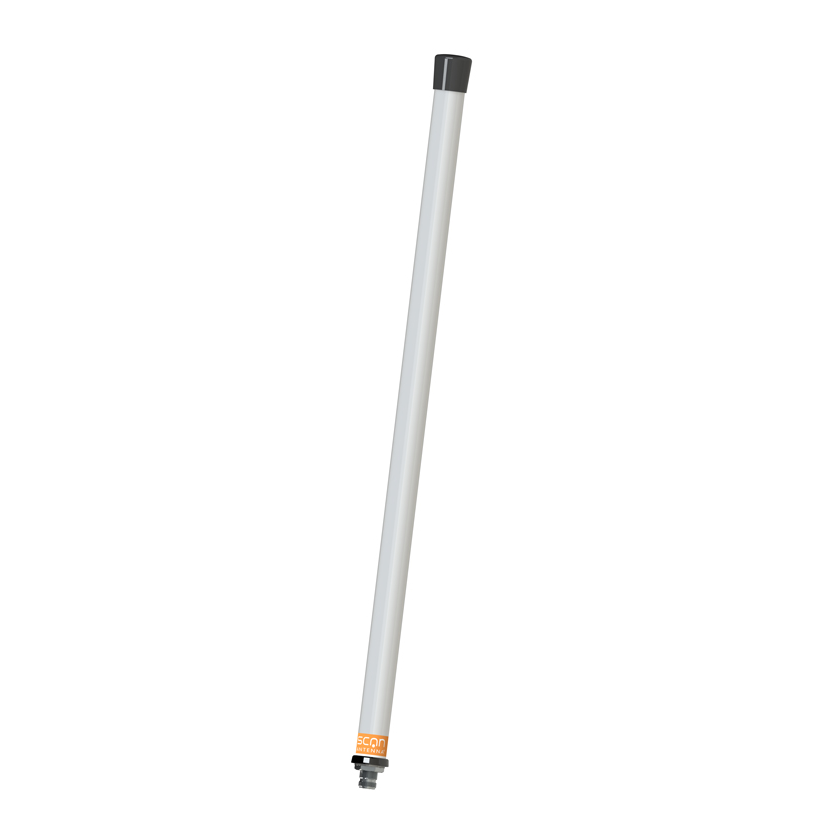

SCAN UHF5G-PLUS Multi-band Marine Antenna

The SCAN UHF5G-PLUS is a high-quality Multi-Band Marine antenna for professional use. The UHF5G-PLUS combines the cellular/mobile GSM(2G), UMTS(3G), LTE(4G), 5G and WiFi frequencies for on-board or land-based phone and WiFi communications. This makes this Multi-Band antenna ideal for IOT and M2M applications and allows the UHF5G-PLUS to be deployed anywhere in the world.

The carefully designed antenna elements are sealed in a high-quality conical glass fibre tube with low wind loading. This makes the SCAN UHF5G-PLUS Multiband Marine antenna suitable for highly corrosive environments such as marine offshore and other demanding applications.

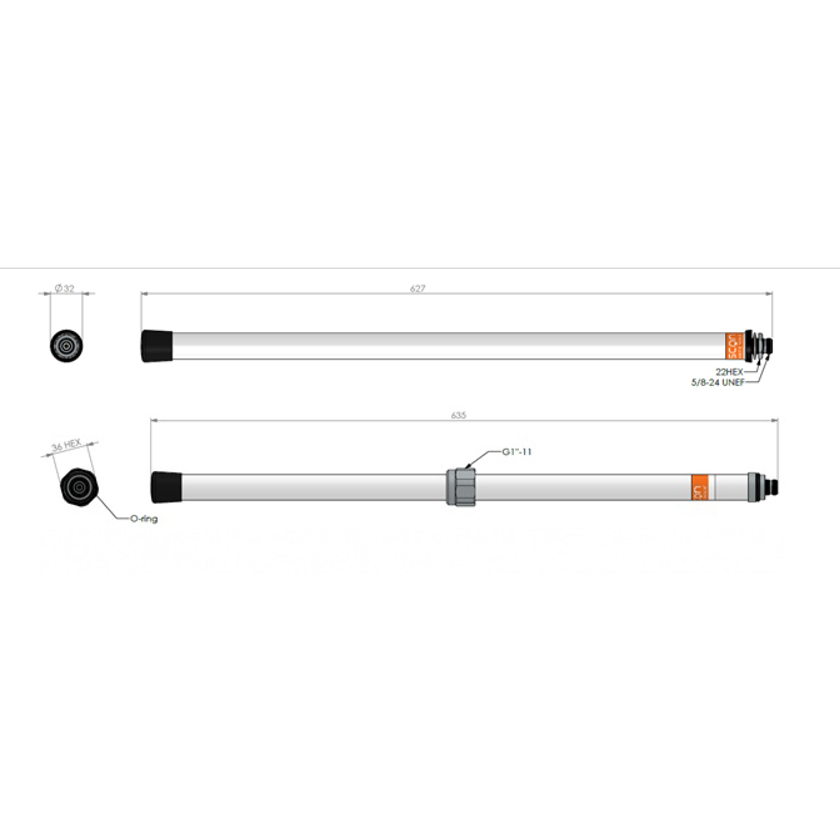

Combined with the appropriate support (option), the SCAN UHF5G-PLUS is suitable for mast, wall and deck mounting. The antenna can be mounted on a mast using the UHF5G-PLUS fixed revolving nut. The antenna can be mounted on vertical or horizontal mast tubes with a diameter of 16 to 54 mm. The cable is (optional) and can be connected to an N-female connector at the bottom of the Scan UHF5G-PLUS. All metal parts are earthed (dc grounded) to significantly reduce noise. A metal ground plate is not required.

With the SCAN UHF5G-PLUS, you obtain a high-quality, lightweight multiband marine antenna that is corrosion- and vibration-resistant and can be deployed anywhere in the world.

• Frequency range 450-3800
• 5G-Proof
• Marine Omni antenna
• Mast or Deck Mounting
• Connector N-female
• Gain: 3-10 Dbi
