SCAN UHF 4G Multi-band Marine Antenna for 3G and LTE 3 dBi

The SCAN UHF 4G Multi-Band Marine antenna is designed for the following frequency range: 790-960 MHz and 1710-2690 MHz. This makes the antenna suitable for 2G (GSM 85,900, 1800 and 1900 MHz), 3G (UMTS 900 and 2100 MHz) and 4G (LTE 800, 1800, 1900, 2100 and 2600 MHz) and WiFi (2400 MHz). The UHF 4G Marine antenna can therefore be used almost anywhere in the world.

The reinforcement is 3 Db (Navy). The carefully designed, broadband antenna elements are sealed in a high quality conical glass fiber tube with a low wind load. This makes the SCAN UHF 4G Multiband 2G, 3G and 4G LTE antenna suitable for highly corrosive environments such as shipping offshore and other demanding applications.

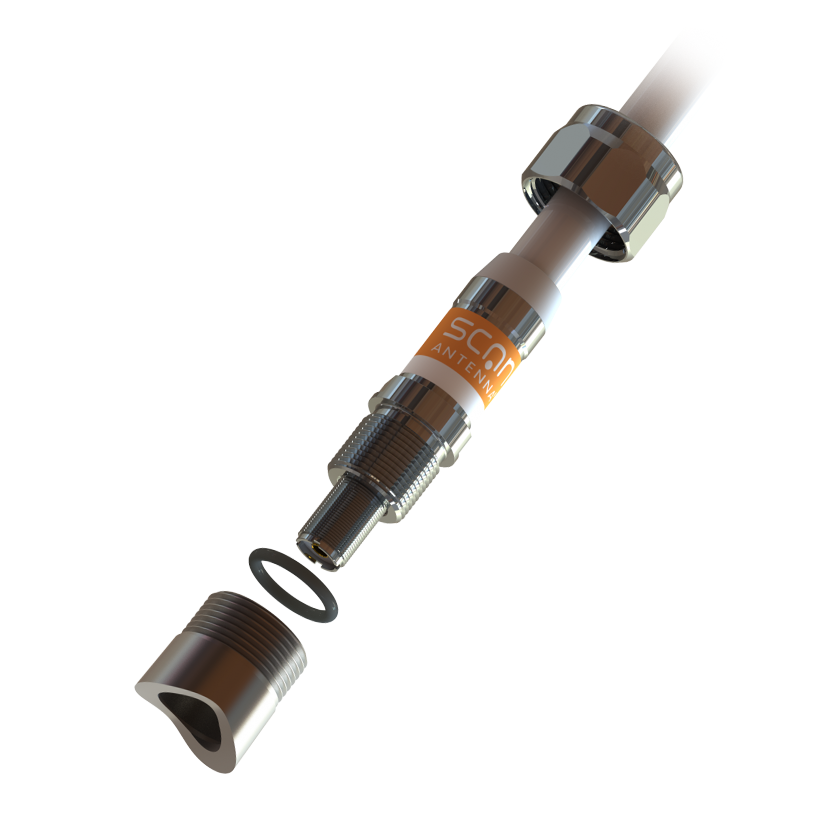

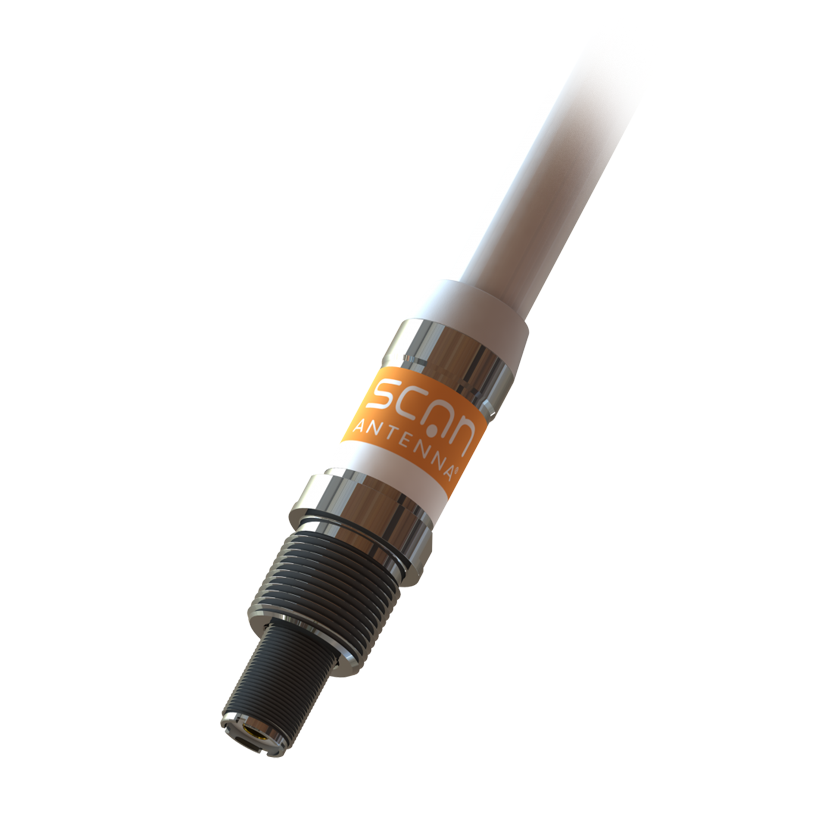

The SCAN UHF 4G Marine antenna, in combination with the right support (option), is suitable for mast, wall and deck mounting. The UHF 4G can be placed on a mast using the 1 inch revolving utility (optional). The antenna can be mounted on vertical or horizontal mast tubes with a diameter of 16 to 54mm. The cable (optional) can be connected to an N-female connector at the bottom of the Scan UHF 4G. All metal parts are grounded (dc grounded) in order to significantly reduce noise. A metal baseplate is not needed. With the SCAN UHF 4G you get a lightweight 2G, 3G 4G LTE multiband marine antenna, which is corrosion and vibration resistant and can be used anywhere in the world.

• Frequency Range 790-960/1710-2690
• LTE 800/1800/1900/2100/ Mhz
• Mast or deck mount
• Connector N-female
• Amplification: 3 Dbi
