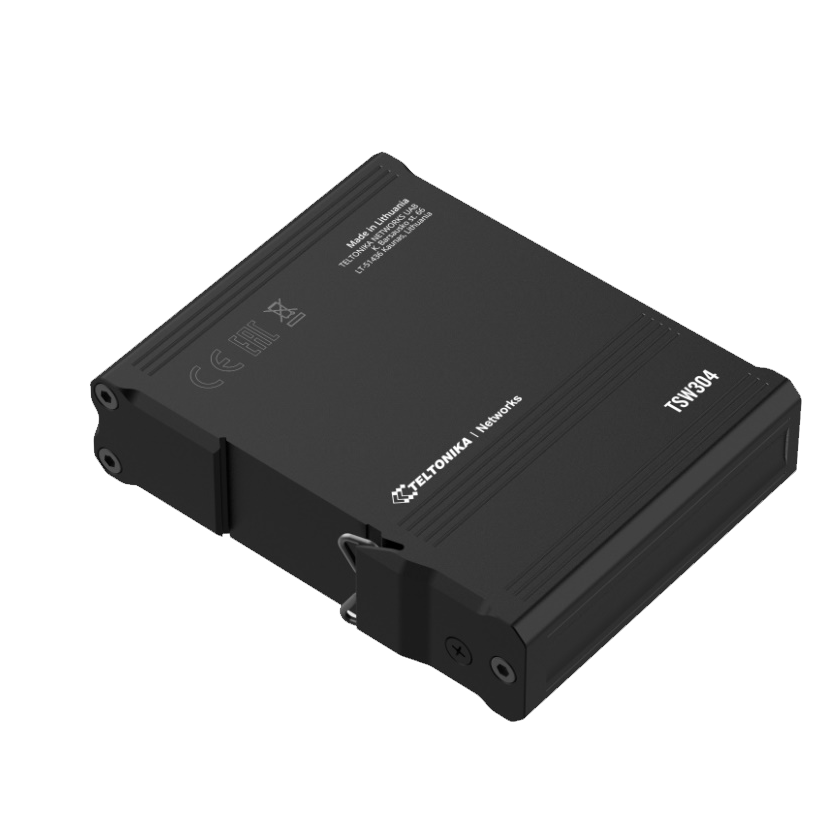

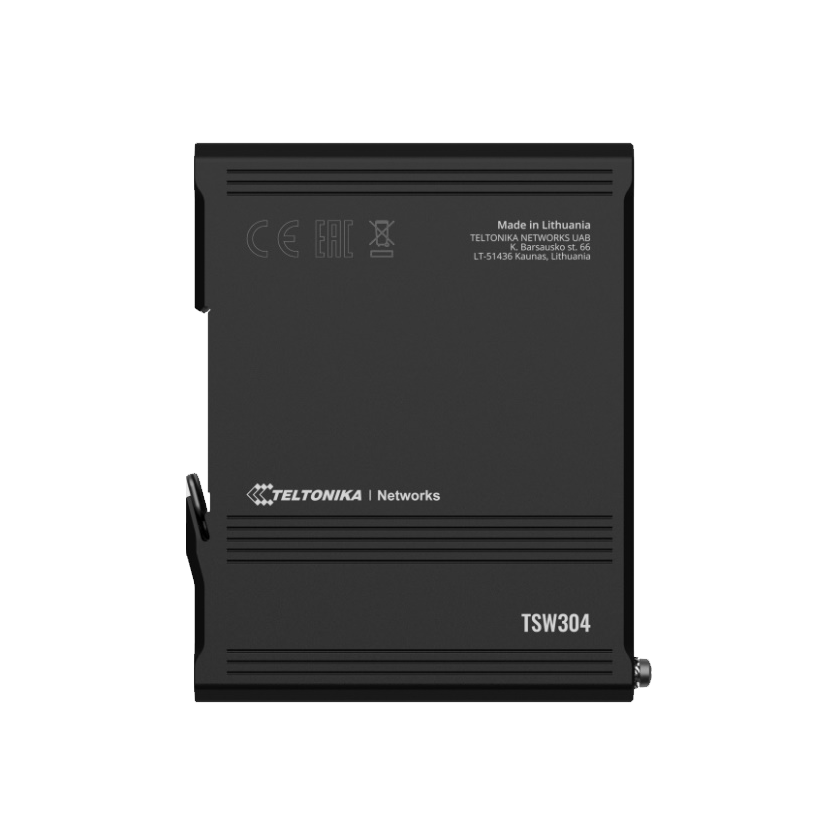

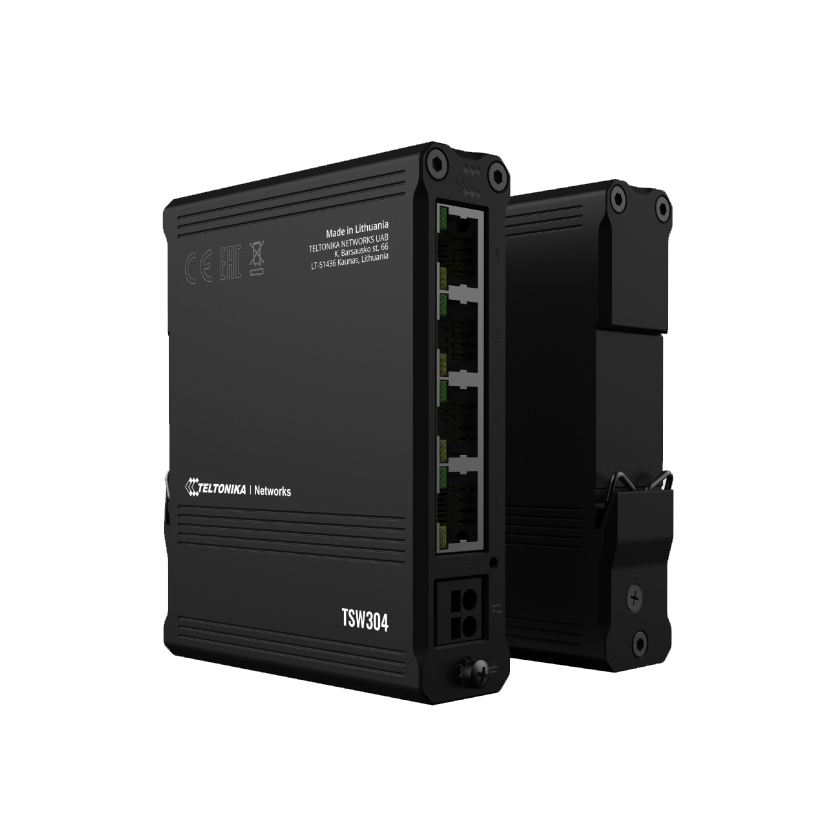

Teltonika TSW304 DIN rail switch

The Teltonika TSW304 - is an industrial 4-port, unmanaged Gigabit Ethernet switch. The 4 PoE RJ45 ports support Power-over Ethernet (802.3af and 802.3at standards). The Teltonika TSW304 is classified as a Power Suplly over Ethernet (PSE) switch. The TSW304-PSE switch makes it possible to provide connected devices with central power supply. The capacity is 30 watts per gate. The Teltonika TSW304 00B000 has 10/100/1000 Mbps RJ45 Ethernet ports and provides high bandwidth for your industrial Ethernet network.

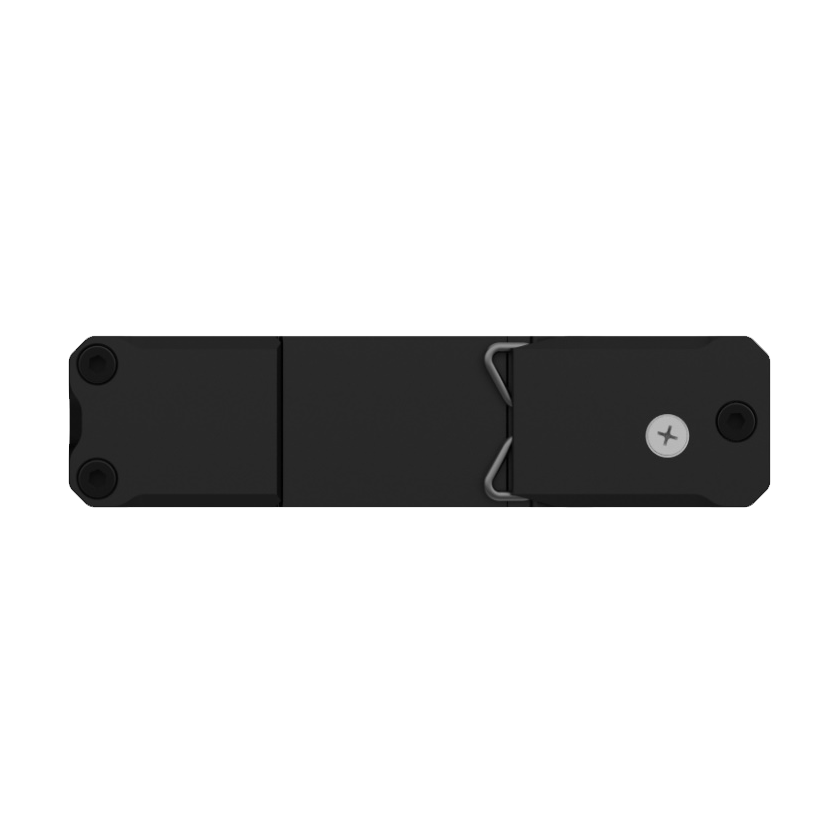

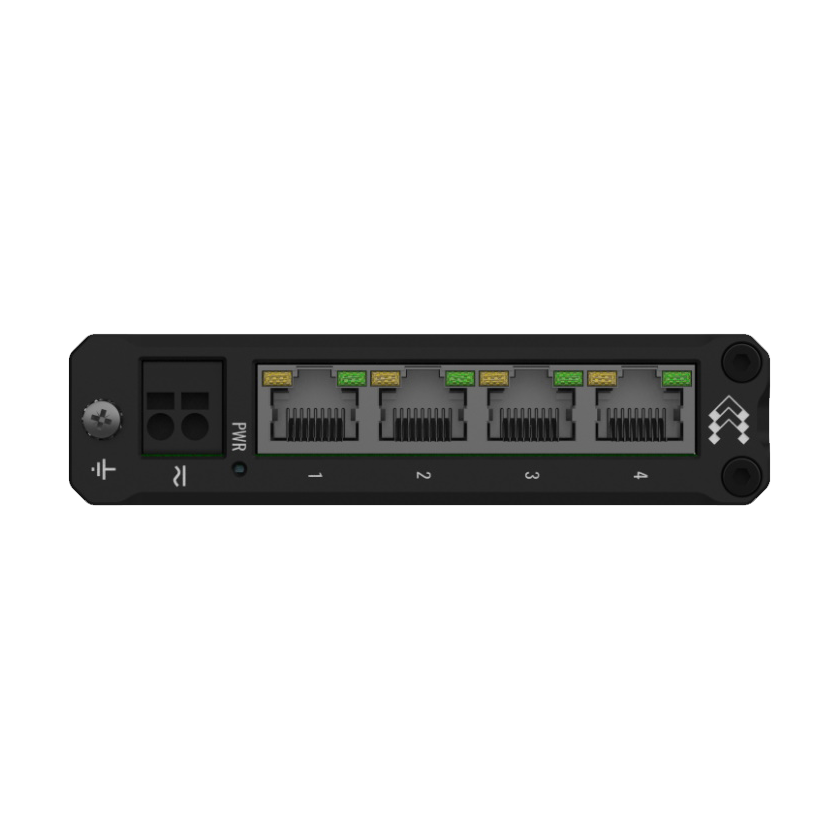

The TSW304 offers simple and convenient installation options. With a built-in DIN rail mount and forward-facing gates, it can be installed in even the most intricate places without taking up much space. Since it has four Gigabit Ethernet ports and is small in size, the number of ports for each solution can be increased by juxtaposing multiple TSW304 switches in places such as server rooms or assembly lines. In this way, switches can provide more devices with network connectivity while maintaining a compact setup.

The Teltonika TSW304 comes in a compact and impact-resistant aluminum housing. If desired, the TSW304 can be fitted with a DIN Rail clamp (option) so that it can be built into a control box. The TSW304 has a wide input of 7-57 VDC and can be connected directly to a battery system.

Properties

• 4x RJ45 PoE ports with 802.3af and 802.3at support 1000 Mbps
• Robust all-aluminum housing
• DIN rail mount
• Plug & Play, no configuration needed
• Wide input 7-57 VDC
• The Total Power of the PSE is 120 W (4x30 W), 106 W with the standard Power supply Unit (PSU)
