Teltonika TSW110 Industrial Unmanaged Switch

  • The Teltonika TSW110 - is an industrial 4-port, unmanaged Gigabit Ethernet PoE switch. The 4 PoE RJ45 ports support Power-over Ethernet (802.3af and 802.3at standards).

    The Teltonika TSW110 device is classified as a Power Suplly over Ethernet (PSE) switch. The TSW110-PSE switch makes it possible to provide connected devices with central power supply. The capacity is 30 watts per gate. The Teltonika TSW110 00000 has 10/100/1000 Mbps RJ45 Ethernet ports and provides high bandwidth for your industrial Ethernet network.

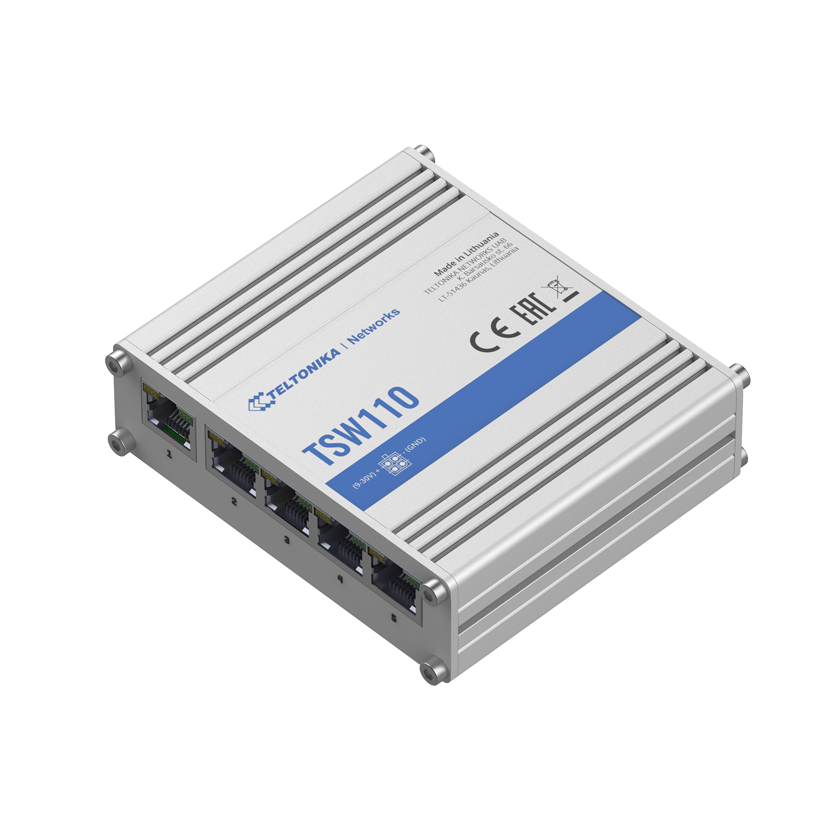

    The Teltonika TSW110 comes in a compact and impact-resistant aluminum housing. If desired, the tsw110 can be fitted with a DIN Rail clamp (option) so that it can be built into a control box. The TSW110 has a wide input of 9-30 VDC and can be connected directly to a battery system. As standard, the TSW110 comes with a 9 W power supply.

  •
  • Properties



    • 4x PoE RJ45 ports with 802.3af and 802.3at support
    • Robust aluminum housing
    • 5x LAN gigabit Ethernet RJ45 ports 1000 MBps
    • Compact size with din rail mounting option
    • Plug & Play, no configuration needed
    • Wide input 9-30 VDC
    • The Total Power of the PSE is 120 W (4x30 W), 60 W with the standard Power supply Unit (PSU)
