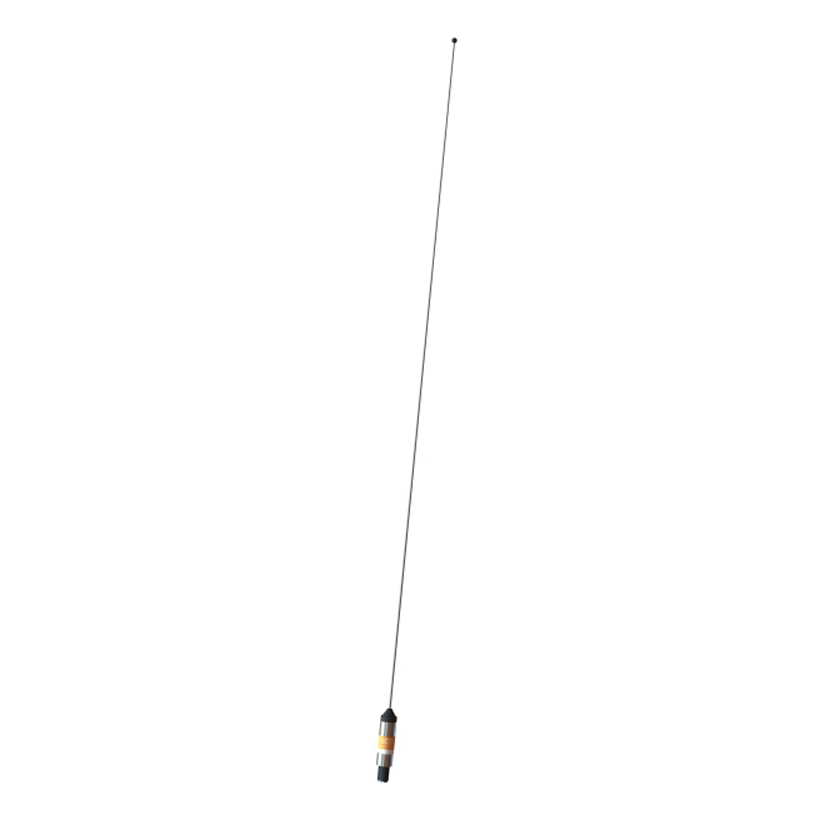

SCAN VHF23 Marine VHF Antenna 2.1 dBi

The SCAN VHF23 Marine antenna is designed for the following frequency range: 156-162.5, which corresponds to the international Maritime VHF band.

The amplification is 3 Db (Navy) and 2.1 DBi. The carefully designed, antenna elements are sealed in a metal housing. The stainless steel blade is flexible and has a low wind load. This makes the SCAN VHF23 antenna suitable for sailing boats, highly corrosive environments such as shipping offshore and other demanding applications.

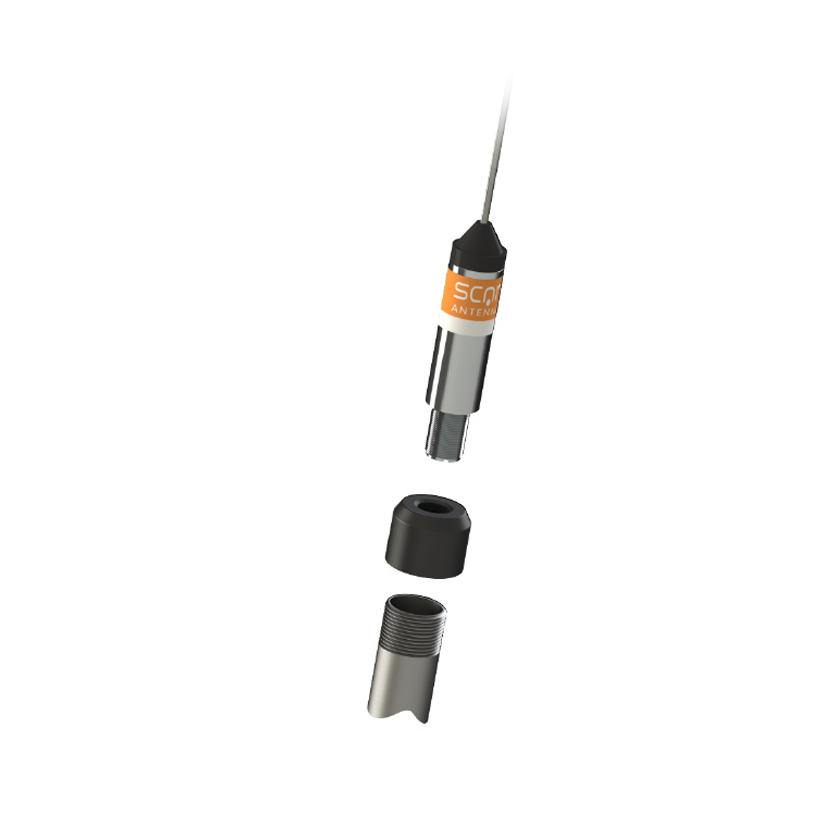

The SCAN VHF23 Marine antenna, in combination with the right support (option), is suitable for mast, railing and deck assembly. The antenna can be mounted on vertical or horizontal mast tubes with a diameter of 16 to 54mm. The cable (optional) can be connected to a UHF Female connector at the bottom of the SCAN VHF23. All metal parts are grounded (dc grounded) in order to significantly reduce noise. A metal baseplate is not needed. With the SCAN VHF23 you get a lightweight VHF marine antenna, which is corrosion and vibration resistant and can be used anywhere in the world.

• Frequency bereik156-162,5
• VHF23 (international VHF band)
• Mast, rail or deck assembly
• Special for sailboats
• Connector UHF-female
• Gain 3 db marine 2.1 Dbi
• High quality VHF antenna for professional use
• In accordance with design for AIS and AM/FM bands
• No groundplane needed
