LGMM-EXT adapter kit for Panorama LPMM/LGMM mimo antennas

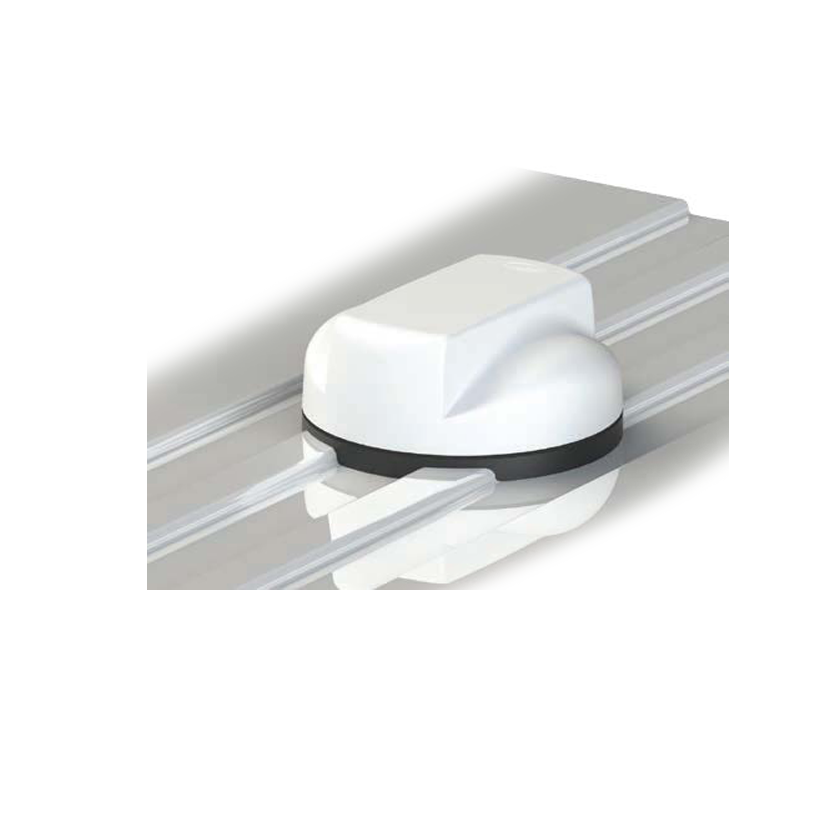

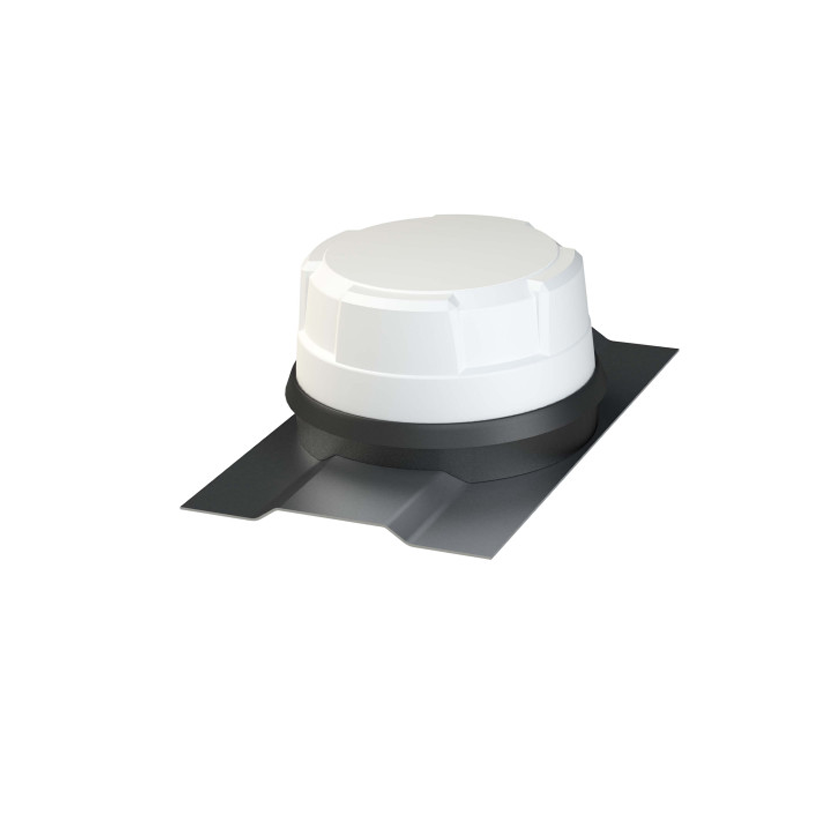

Panorama LG(P)MM Adapter kit for ribbed or uneven and thick panels for use with the LGMM/LPMM “low Profile MIMO antenna series”. With the LGMM-EXT adapter kit you have a flexible mounting solution for ribbed or uneven roofs of, for example, caravans, campers and boats.

The panorama adapter kit is made of silicone foam, is black in color and requires compression of 3mm for a proper seal.  The mounting hole of the pad has a diameter of 25mm and a mounting depth of max 20mm, including panel and rib height.

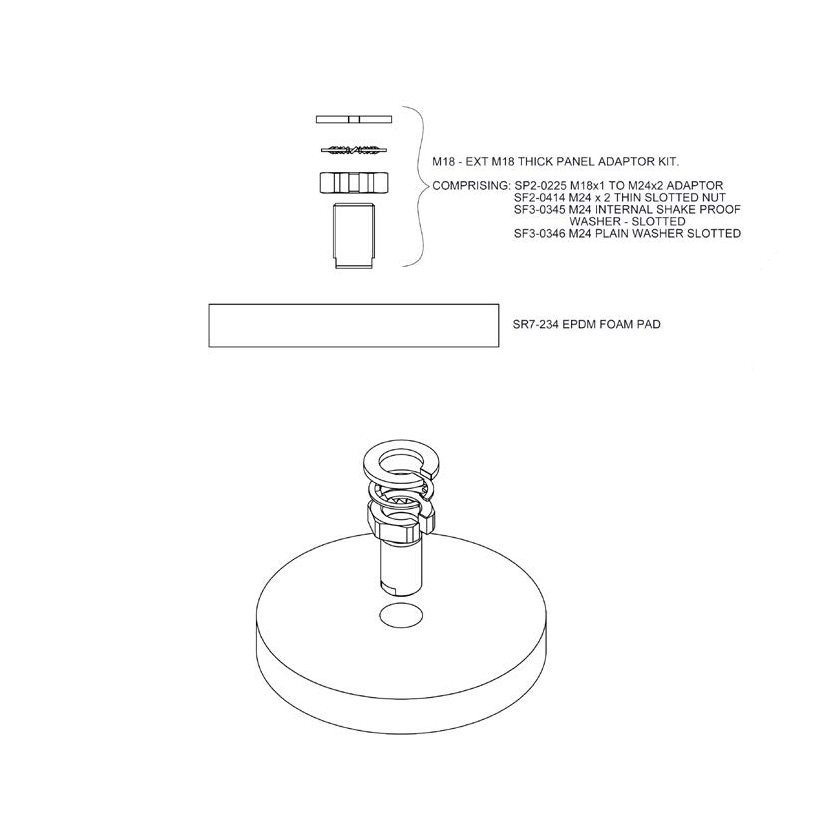

The panorama adapter kit  Consists of an extra long threaded bush that can be screwed onto the existing threaded end of an LPMM/LGMM MiMo antenna, a nut, a body washer and an EPDM foam pad. With this extension kit, the wire end is extended from 10 to 30 mm. The installation of the adapter kit for the LGMM/ LPMM MiMo antennas is very simple.  Once the antenna is mounted  and the nut on the inside is tightened, the epdm pad will take the shape of the underlying surface and thus close or seal the mounting hole. to seal. With the Panorama LGMM-EXT-R adapter kit you obtain an aesthetically pleasing finish of the antenna on any desired surface.
