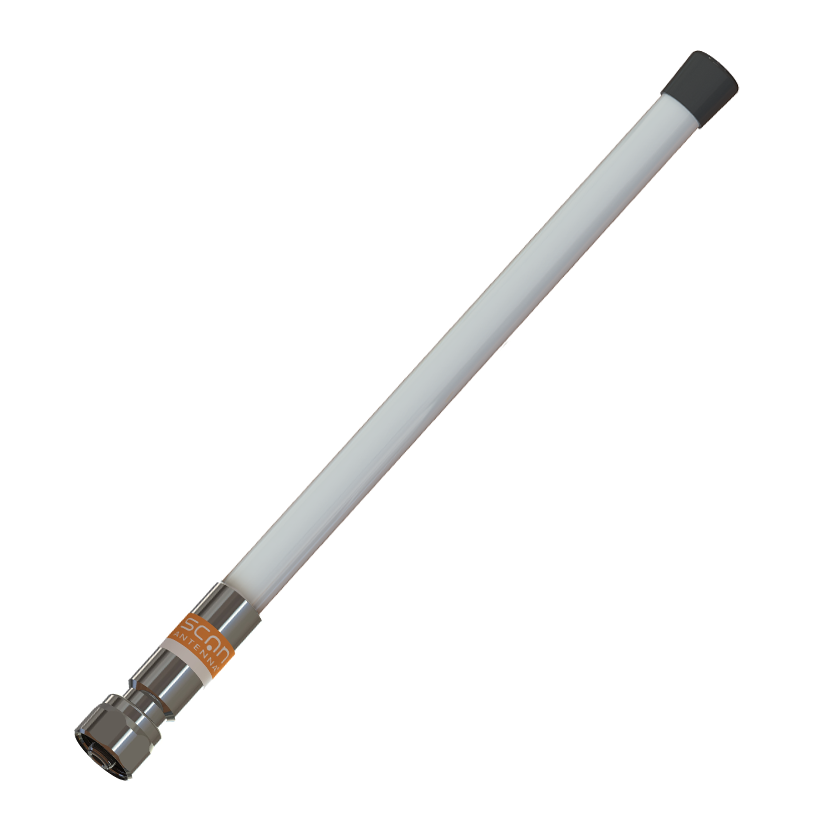

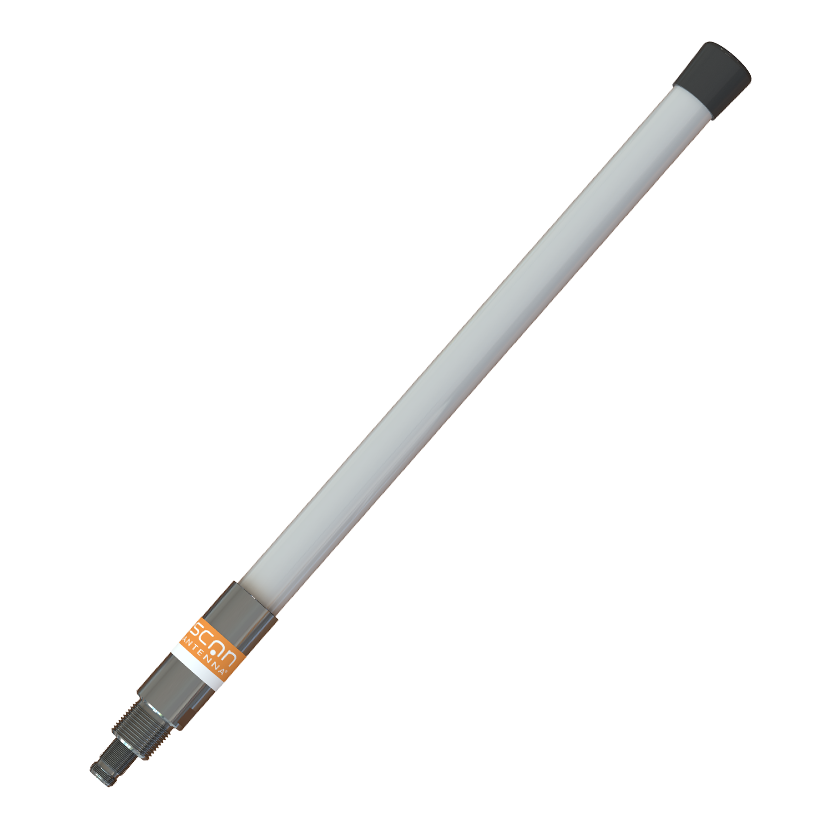

SCAN UHF5G Multi-band Marine Antenna 5G-Proof 3 - 10 dBi

The SCAN UHF 5G Multi-Band Marine antenna is designed for the following frequency range: 700-3800 MHz. This makes the SCAN UHF 5G antenna 5G proof and suitable for the following frequencies: The Scan UHF 5G 5G-Marine antenna can be used almost anywhere in the world. The Gain is 3-10 dBi.

The carefully designed, broadband antenna elements are sealed in a high quality conical glass fiber tube with a low wind load. As a result, the SCAN UHF 5G Multiband 2G, 3G, 4G and 5G Marine antenna is suitable for highly corrosive environments such as shipping offshore and other demanding applications.

The SCAN UHF 5G Marine antenna, in combination with the right support (option), is suitable for mast, wall and deck mounting. The UHF 5G can be placed on a mast using the 1 inch revolving utility (optional). The antenna can be mounted on vertical or horizontal mast tubes with a diameter of 16 to 54mm. The cable is (optional) and can be connected to an N-female connector at the bottom of the Scan UHF 5G. All metal parts are grounded (dc grounded) in order to significantly reduce noise. A metal baseplate is not needed. With the SCAN UHF 5G you get a lightweight and high quality head 2G, 3G 4G, 5G multiband marine antenna, which is corrosion and vibration resistant and can be deployed anywhere in the world.

• Frequency range 700-3800
• 5G-Proof
• Marine Omni antenna
• Mast or Deck Mounting
• Connector N-female
• Gain: 3-10 Dbi
