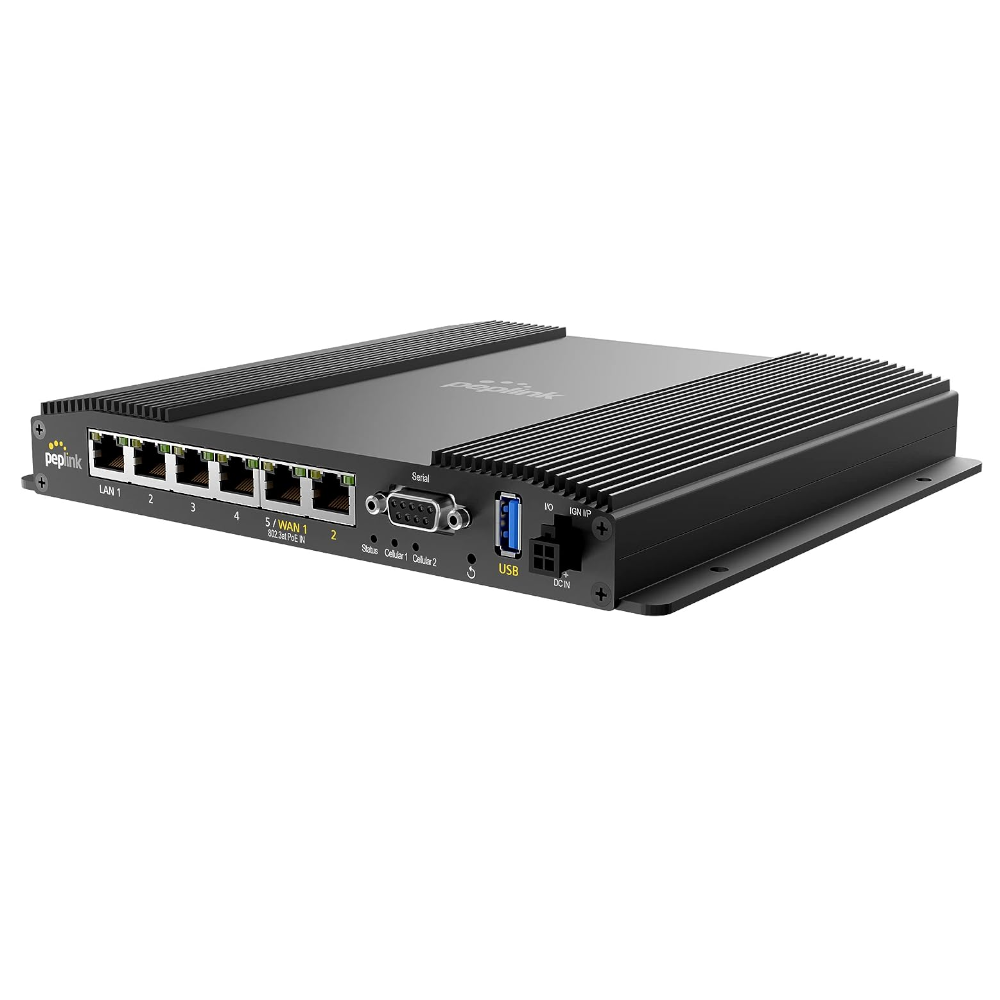

The Pepwave MAX BR2 PRO router is specially designed for heavy industrial and automotive applications. The robust housing of the Pepwave MAX BR2 PRO is designed with impact-resistant materials and is resistant to extreme operating conditions. Thus, the router easily passes shocks, vibrations and extreme temperatures. Are you curious about the exact certification? Then check the specification sheet for more information.
Realize reliable point-to-point or point-to-multi WAN connections with the intelligent Pepwave MAX BR2 PRO. In addition to critical processes, the router provides a powerful connection (up to 4 GBPS download!) For purposes such as primary internet, video surveillance, payments and vehicle communications for police cars, fire engines and ambulances, for example. In addition, this router is very suitable to take on a trip with a camper or yacht. Thanks to the Hot Failover technology, the connection is maintained. Below videos you will find a demo of this Hot Failover technology.

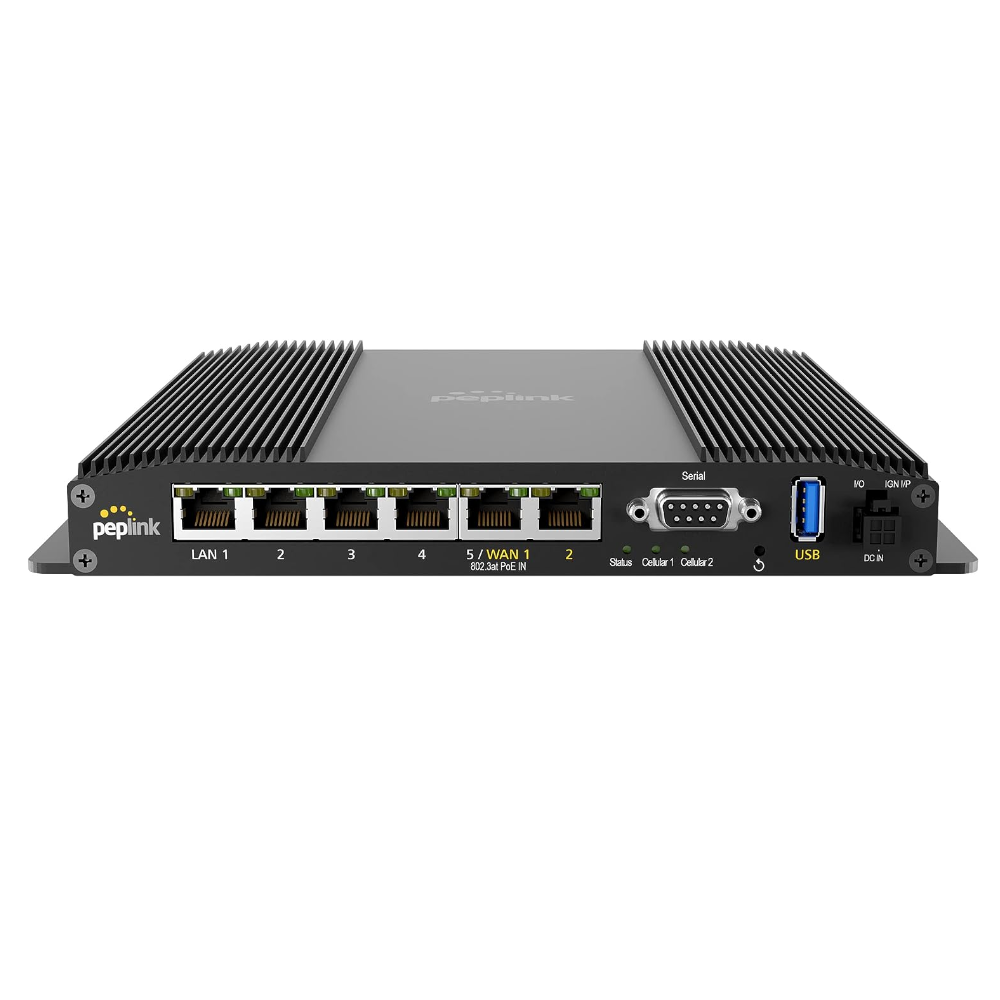

The Pepwave MAX BR2 PRO has UTP ports, including 4x LAN and 2x LAN/WAN port for a fast WiFi connection. This Pepwave MAX BR2 5G & 4G LTE router seamlessly connects to various Machine to Machine (M2M) and vehicle applications in the industry. Because the Pepwave MAX BR2 PRO router has an external GPS connection and a wide input (10-30 VDC), it can also be loaded via the ignition switch of a vehicle. In addition to the supplied power adapter, you can also load the router via a terminal block connector. This way you can always boot and shut down the router correctly, which makes the router extremely suitable for various transport and asset tracking applications.
-
Properties
- Simlockfree with world coverage
- M2M-5G & 4G LTE Router + GPS
- Transit speed: up to 1 Gbps
- WiFi b/g/n
- Up to 150 connections at the same time
- 2 SIM Card Locks
- Speedfusion Hot Failover
- Certified for heavy conditions
- 4x LAN 2x WAN
- Power Connector: 10 - 30 VDC
- World Coverage
-
Coverage |
Primary: APAC, EMEA |
|
Compatibility: Global |
|
5G bands |
n1,n2,n3,n5,n7,n8,n12,n20,n28,n38, |
|
n41,n66,n71,n77,n78,n79 |
4G LTE bands |
B1,B2,B3,B4,B5,B7,B8,B12,B13,B14,B17, |
|
B18,B19,B20,B25,B26,B28,B29,B30,B32, |
|
B34,B38,B39,B40,B41,B42,B46,B48,B66, |
|
B71 |
SIM slot |
Yes, 2. |
SF Hot Failover |
And |
WAN interface |
2x Gigabite Ethernet, 1x Embedded |
|
LTE Modem with Redundant SIM Slots |
LAN-Interface |
4x GE |
throughput rate |
1 Gbps |
Users |
1-150 |
Download |
4 Gbps |
Upload |
700 Mbps |
Wi-Fi |
802.11b/g/n Wi-Fi is 2412 − 2472MHz |

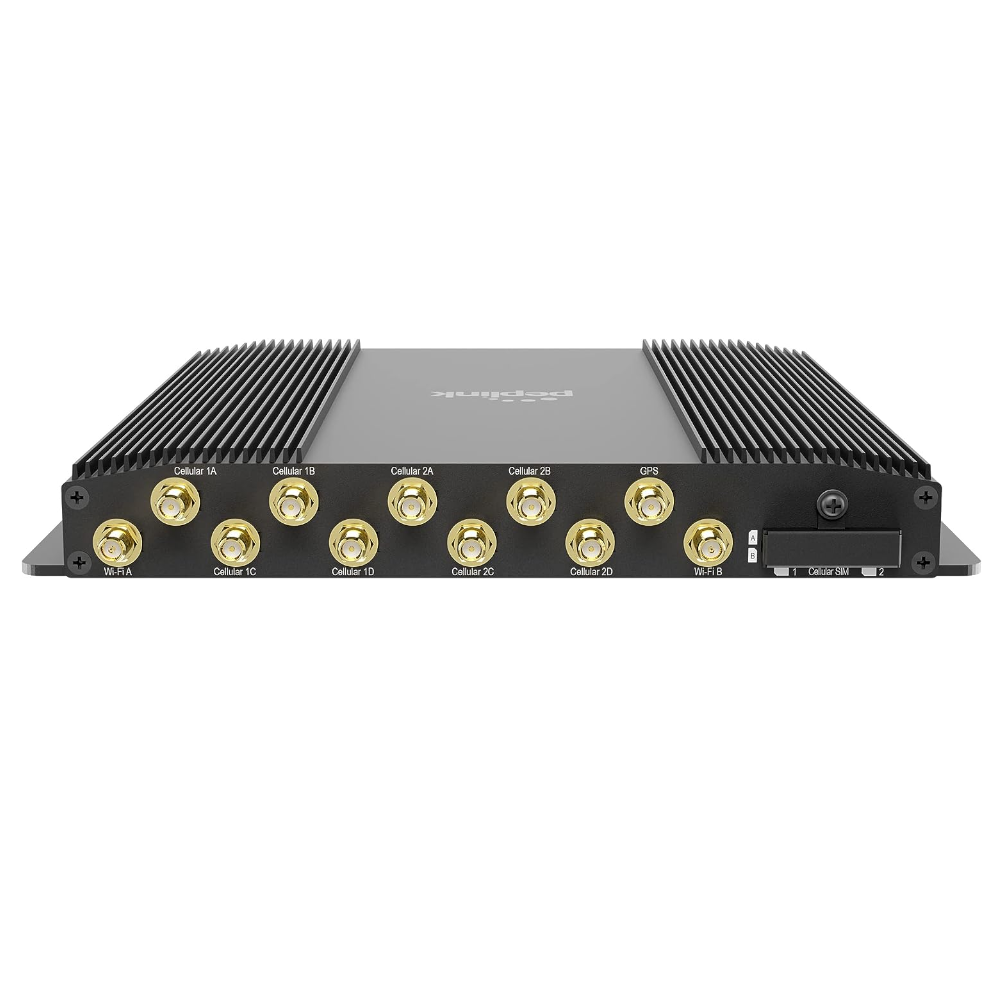

Connectors |
8x SMA Cellular, |
|
2x Wi-Fi SMA-RP |
|
1x SMA GPS |
Power |
Device: 10V - 30V DC |
|
Power Supply: 12 V 3A |
Power Consumption |
30W (max) |
Dimensions |
218 x 195 x 29.5 mm |
Weight |
1.1 kg |
Operating temperature |
-40 + 65 °C. |
Humidity |
15% to 95% (non-condensing) |
|
|
Look for the detailed specifications under downloads.
-
1x MAX-BR2-PRO-5GD-T-PRM
1x Power supply 12 VDC 3A
2x5 dBi Wi-Fi Antennas
1x GPS Antenne
8x 2dBi 5G in 4G LTE Antennas
1x QSG (quick start guide
-
Data sheet Pepwave MAX-BR2-PRO
-
Security with PepVPN, Firewall and QoS
Set up a secure network with one IP address. The VPN connection of the Pepwave MAX BR1 PRO uses an IPsec encryption and is maintained thanks to the Hot Failover technology. In addition, the SPI firewall protects the network and blocks unwanted websites for (some of) the connected devices. With Quality of Services you also give priority to the data streams, so that these processes always work.
Peplink Speedfusion Solution
A trio of technologies are designed to prevent specific network problems: Hot Failover, Wan Smoothing and Bandwith Bonding. This means that your users always make optimal use of a performance internet connection.
InControl2 Remote Control and Fleet Tracking
Via GPS tracking and InControl2 cloud based management, you can remotely control and manage all routers. These tools provide an overview of the location of all vehicles of the fleet. To do this, use the mobile app available in the App Store.
Access portal to be personalised
Personalize the access portal by uploading the logo and terms and conditions. Here you can also set the allowed bandwidth, access duration per user or distance radius.
