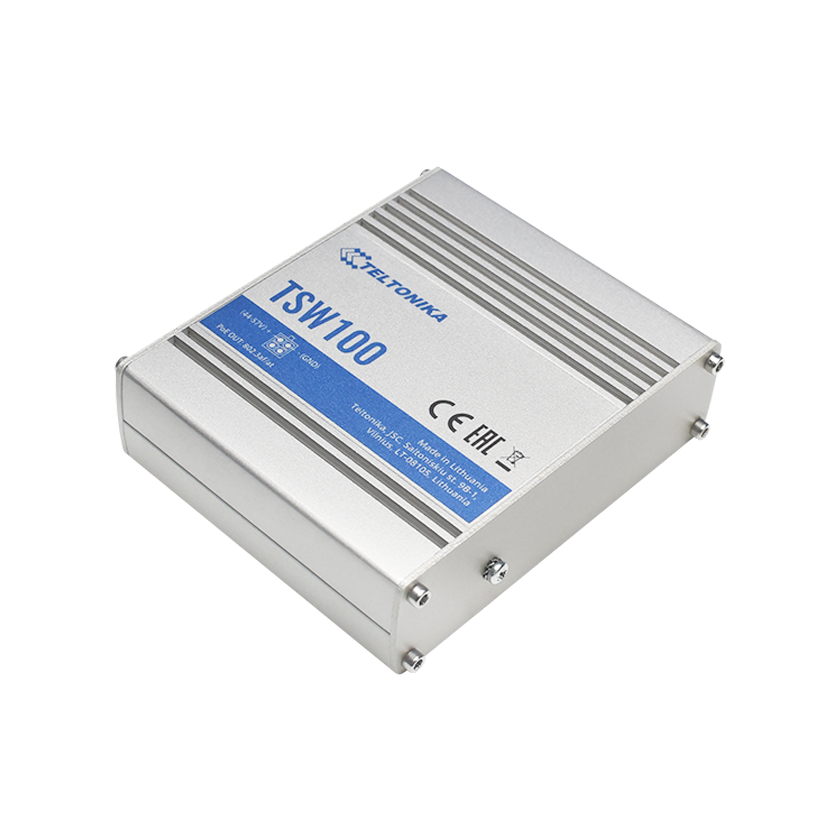

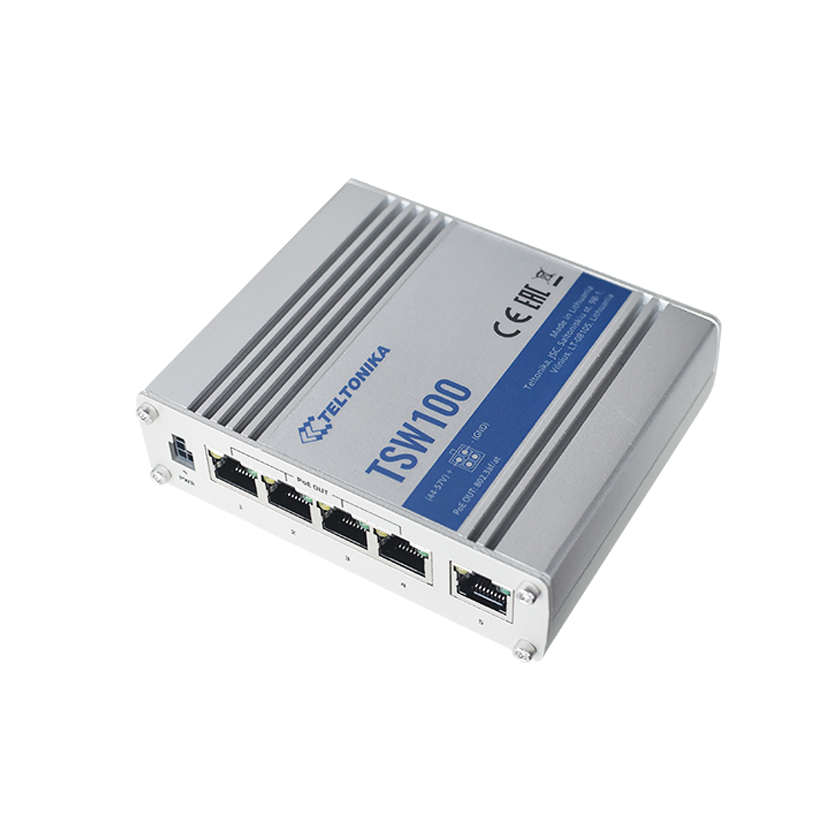

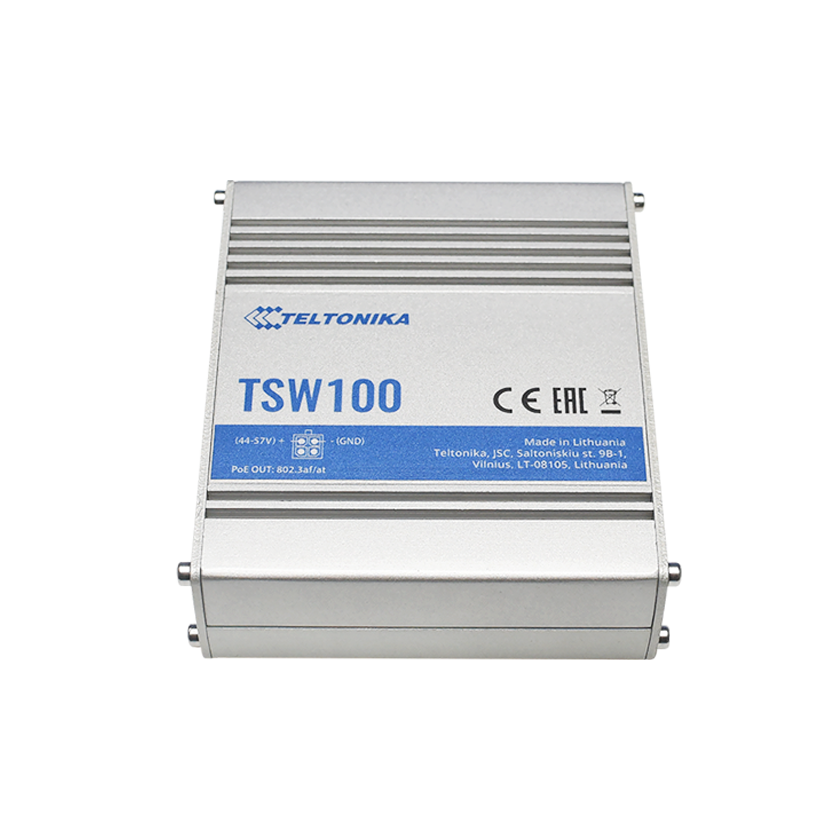

Teltonika TSW100 Industrial Unmanaged PoE Switch

The Teltonika TSW100 - is an industrial five-port unmanaged Gigabit Ethernet PoE switch, which provides connected devices with central power supply. The TSW100-PSE switch is classified as a Power Supply over Ethernet (PSE) with 30W capacity per port. The four PoE RJ45 ports support Power-over Ethernet (802.3af and 802.3at standards).

The Teltonika TSW100 is produced from a compact and impact resistant aluminum housing. The TSW100 features 10/100/1000 Mbps RJ45 Ethernet ports and offers high bandwidth for your industrial Ethernet network. Bovenden, the Teltonika TSW100 has a wide input of 7-58 VDC and can be connected directly to a battery system. By default, the TSW100 comes with a 65W Power Supply. If desired, this switch can be supplied with a DIN Rail clamp (option) so that you can easily install the switch in a control box.

The TSW100 is ideal for high-bandwidth professional applications where it is necessary to provide both a reliable data connection and power supply. This includes applications in industry, office, events but also for surveillance systems.

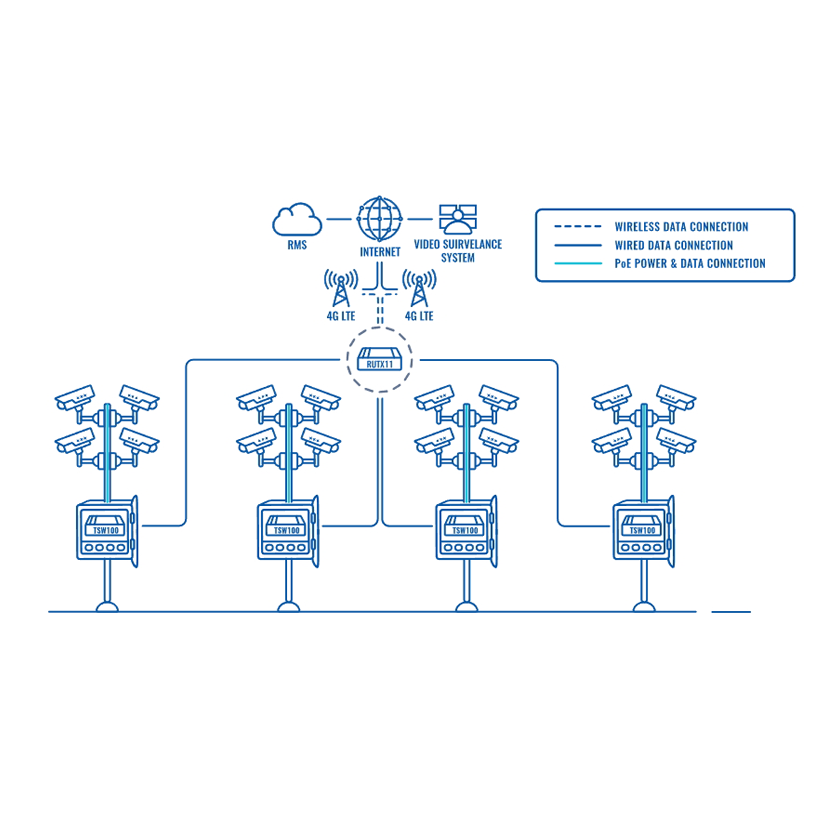

With the combination of a Teltonika router and the TSW100, you can easily set up a complex monitoring system. Via the four Ethernet ports that support PoE (Power over Ethernet) it is possible to power the cameras directly, up to 30W power per port. Both the Teltonika routers and the TSW100 switch can withstand severe weather conditions with a wide operating temperature range and have numerous mounting options for faster and easier installations. This solution can be deployed very quickly and can be operational within a few hours. The Teltonika Remote Management System allows the entire solution to be set, configured and managed remotely.

Properties

• 4x PoE RJ45 ports with 802.3af and 802.3at support
• Robust Aluminum Housing
• 5x Gigabit Ethernet RJ45 ports 1000 Mbps
• Compact size with Din rail mounting option
• Plug & Play, no configuration needed
• Wide input 7-58 VDC
• The total power of the PSE is 120 W (4x30 W), 60W with the standard Power supply Unit (PSU)
