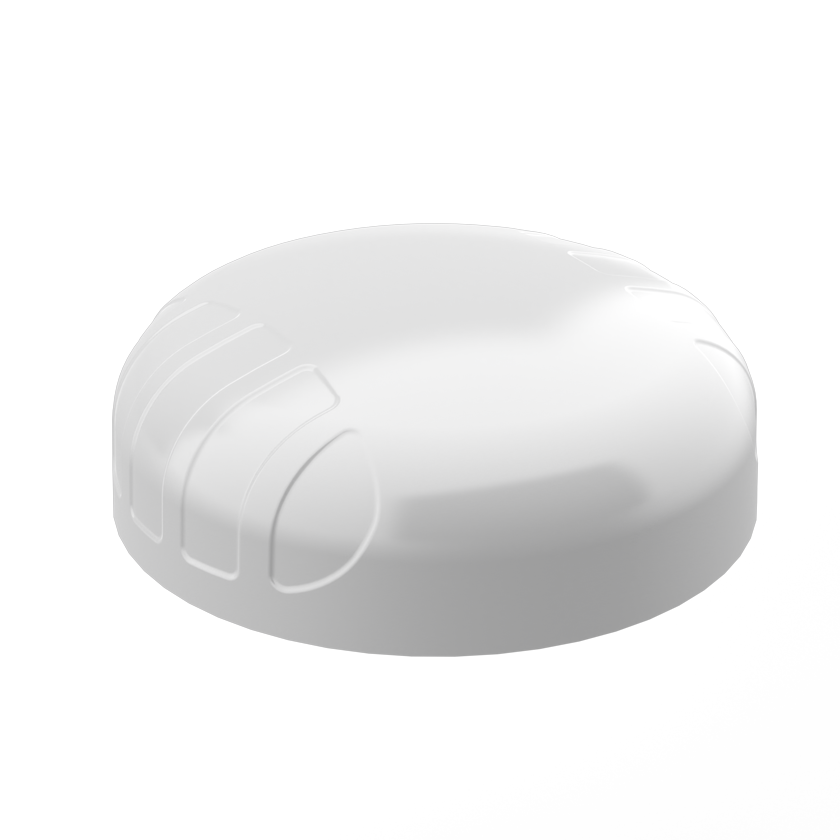

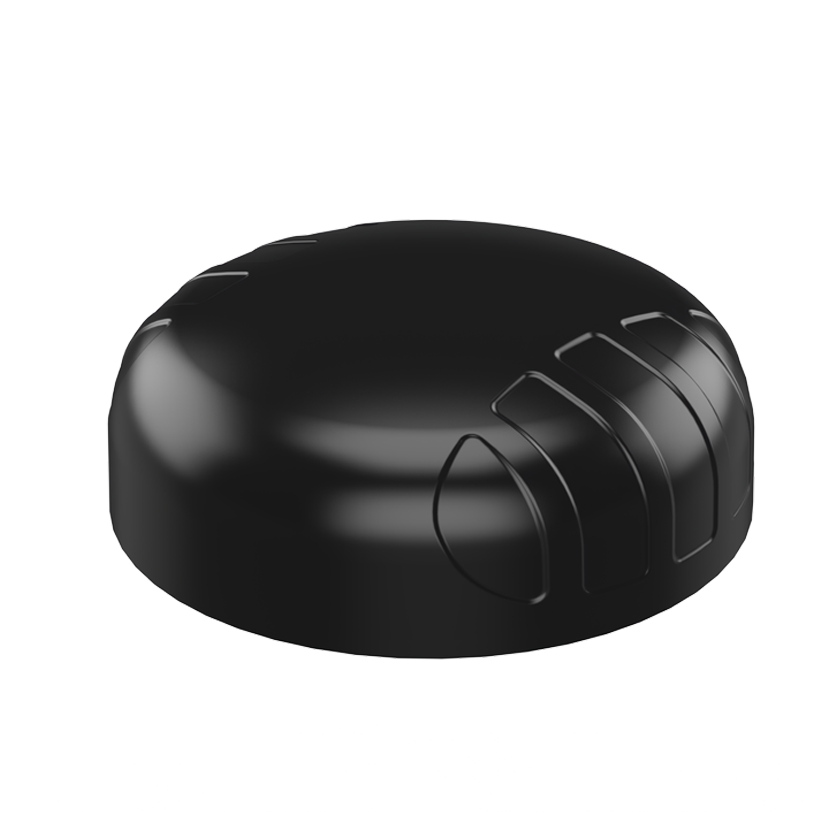

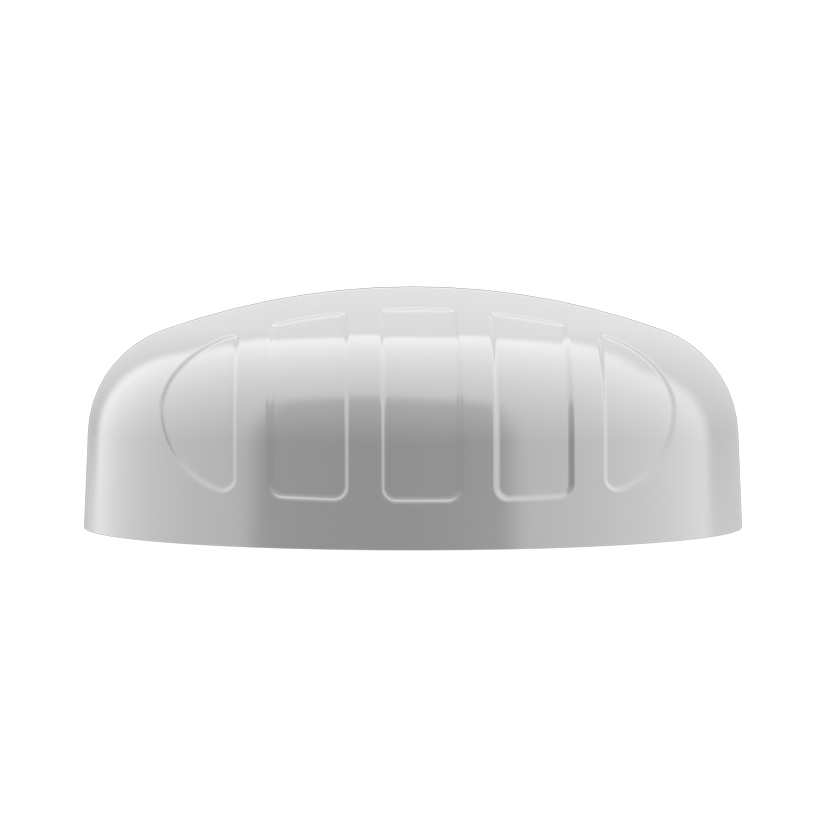

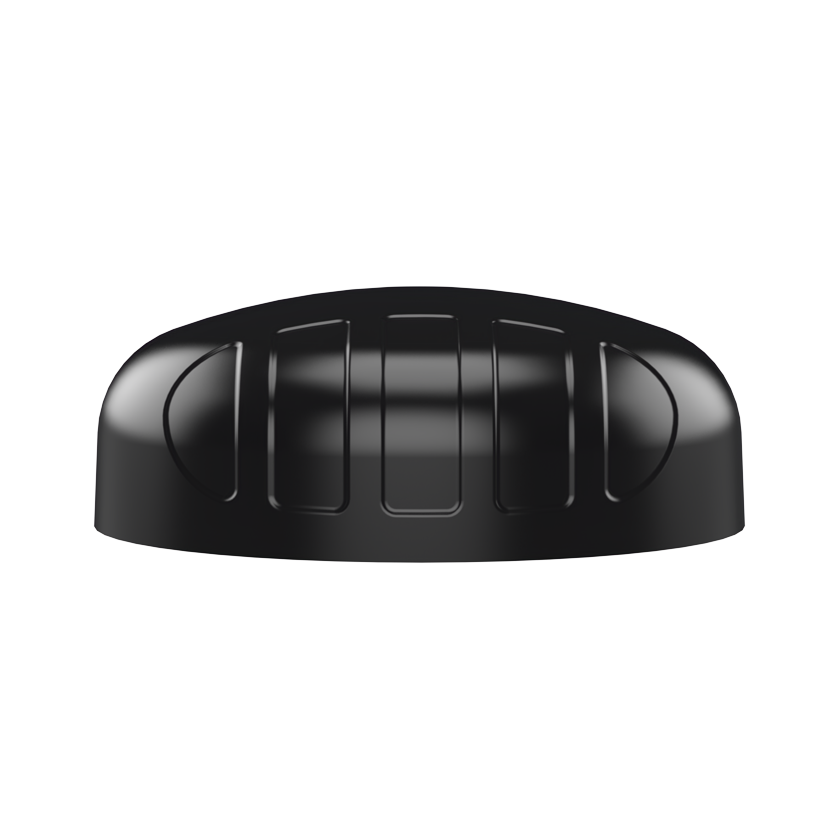

With the new PUCK antennas, Poynting offers an antenna range that is very compact with a high level of performance. This makes the Poynting A-puck series well suited for use in the IoT / M2M, Smart Meter, Marine Utility and transportation markets.

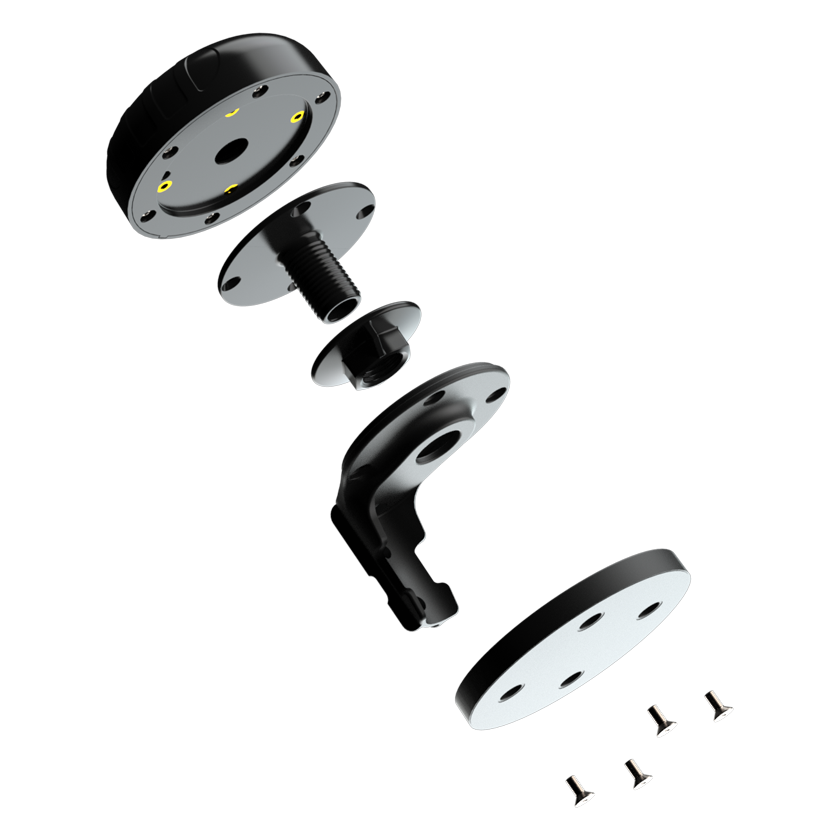

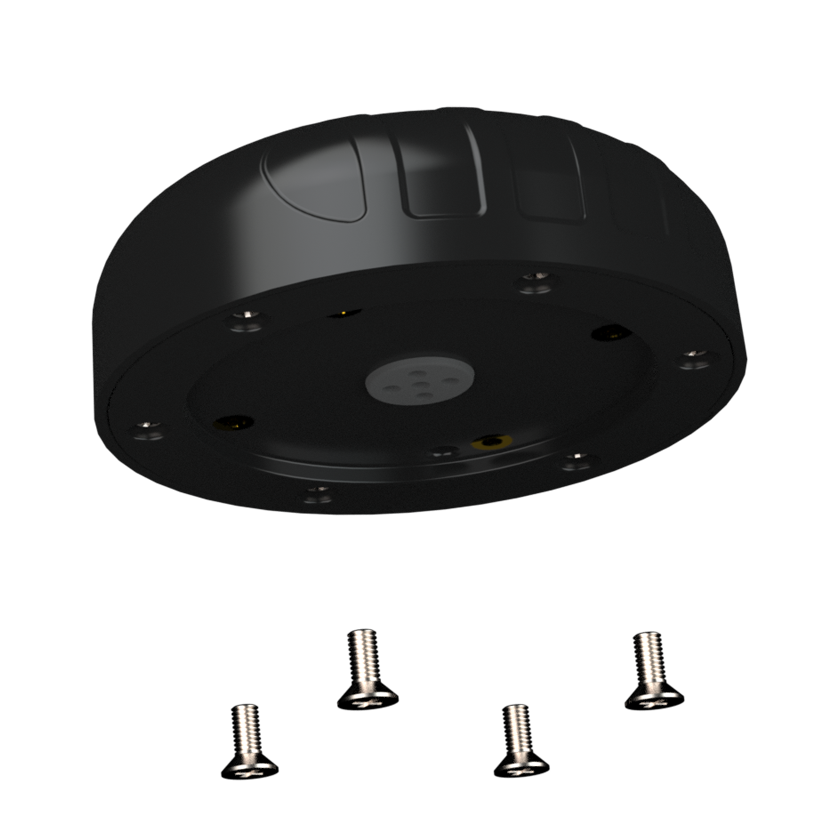

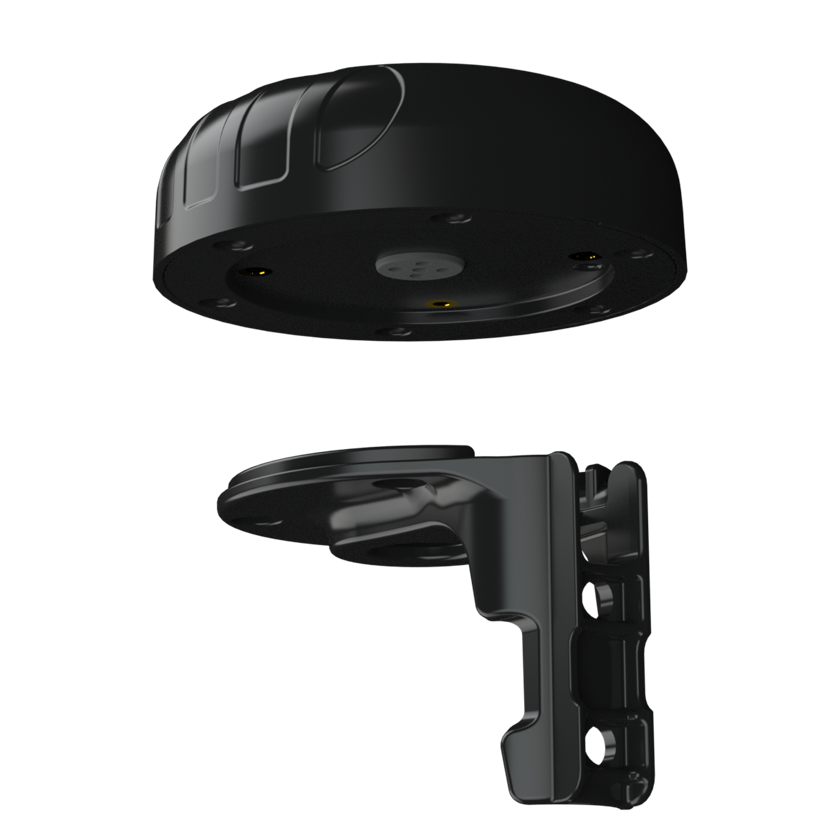

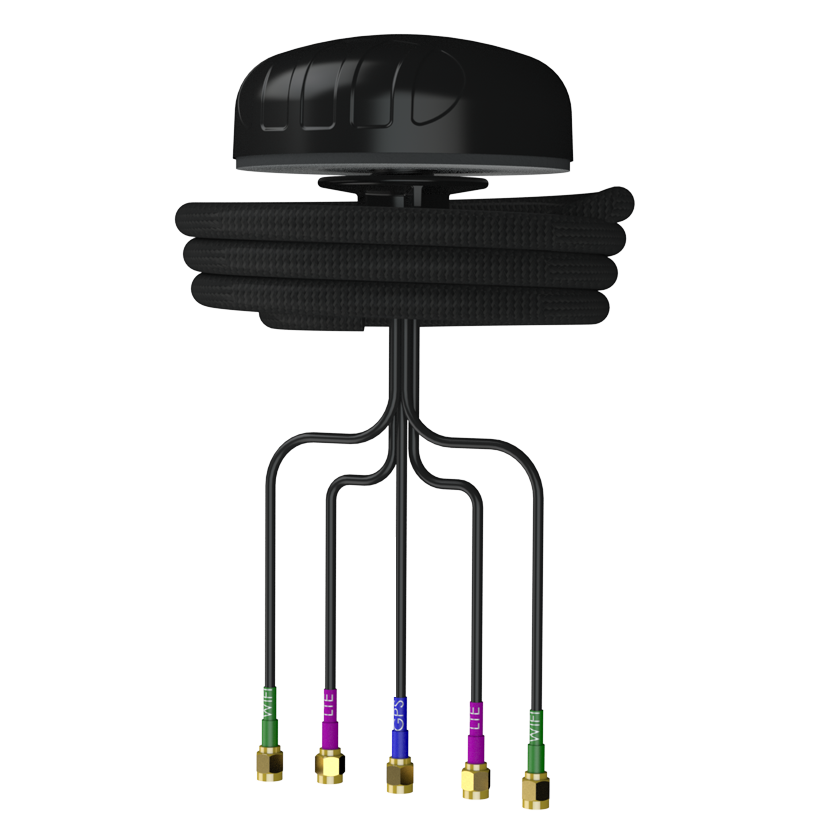

This A-puck-xx antenna series offers various combination options with MIMO LTE, MIMO WiFi and GPS / GLONASS within the same housing, while its mounting is simple thanks to the many mounting options. Due to excellent engineering and solid design, this puck IoT-M2M antenna offers exceptional performance for its small size.
The Poynting A-MIMO puck-xx MiMo antenna is an “outdoor” omni directional antenna, which can be deployed on an ultra-wide frequency range (617-960, 1427-1517.1710-2700 and 3400-4200 Mhz). This makes the antenna 5G-Proof.
Variants | LTE | Wi-Fi | GPS |
Puck-1 Antenna | 1x SISO | - | - |
Puck-2 (2 in 1) Antenna | 2x2 PASS | - | - |
Puck-4 (3 in 1) Antenna | 2x2 PASS | - | And |
Puck-5 (5 in 1) Antenna | 2x2 PASS | 2x2 PASS | And |
Puck-7 (4-in-1) Antenna | 2x2 PASS | 2x2 PASS | - |
Puck-8 (3 in 1) Antenna | 2x2 PASS | 1x SISO | - |
Puck-12 (2 in 1) Antenna | - | 2x2 MIMO | - |
Puck-GPS-1 Antenna | - | - | And |
M2M and IoT Applications
Remote metering (smart metering)
IoT an M2M
Remote monitoring
