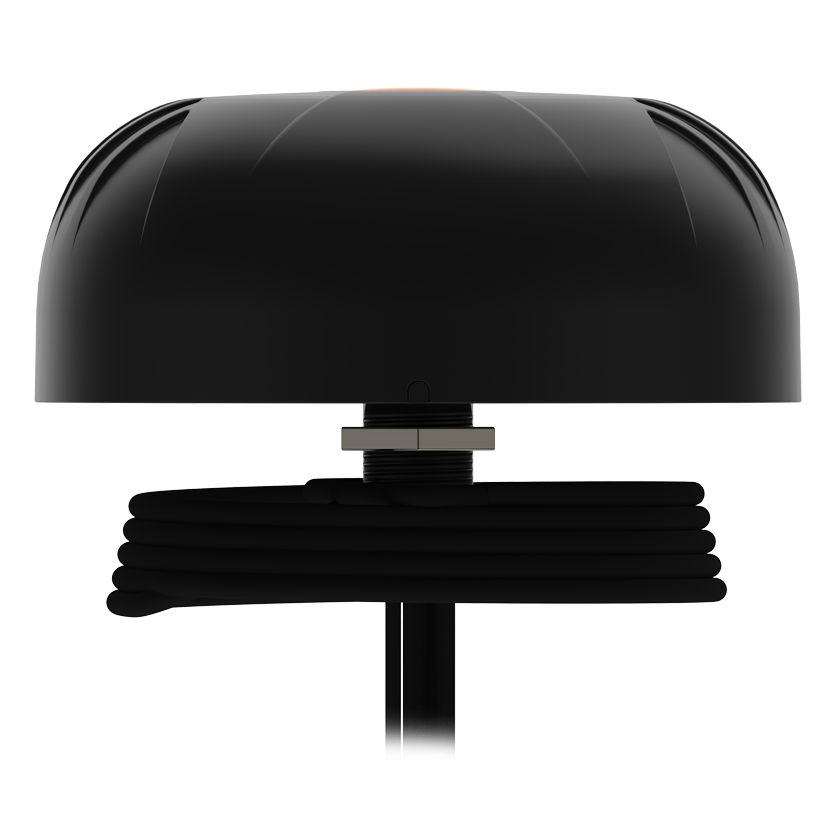

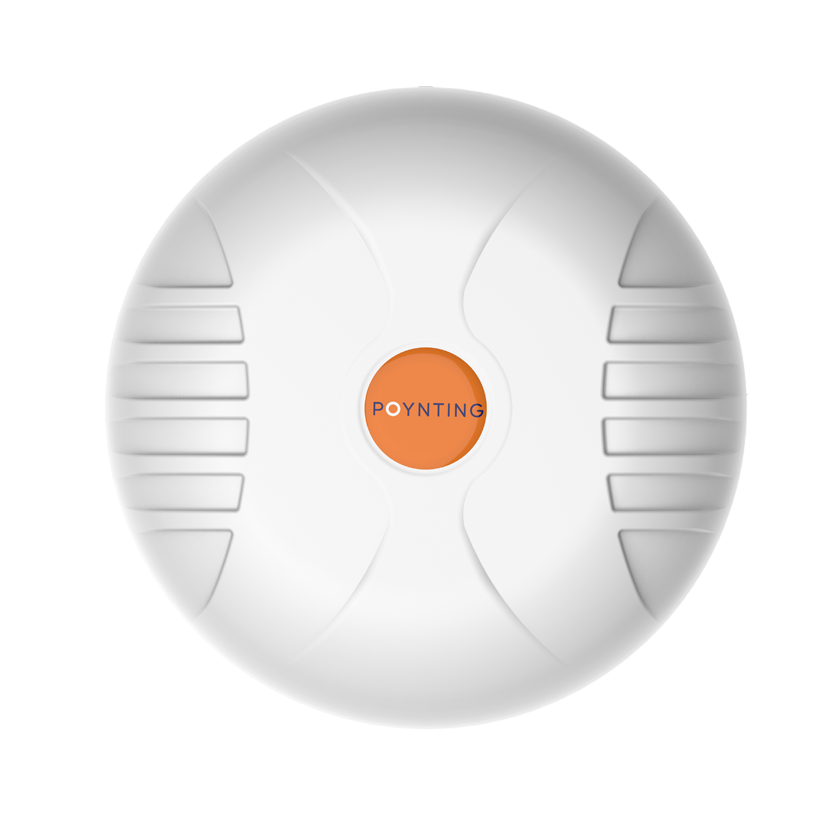

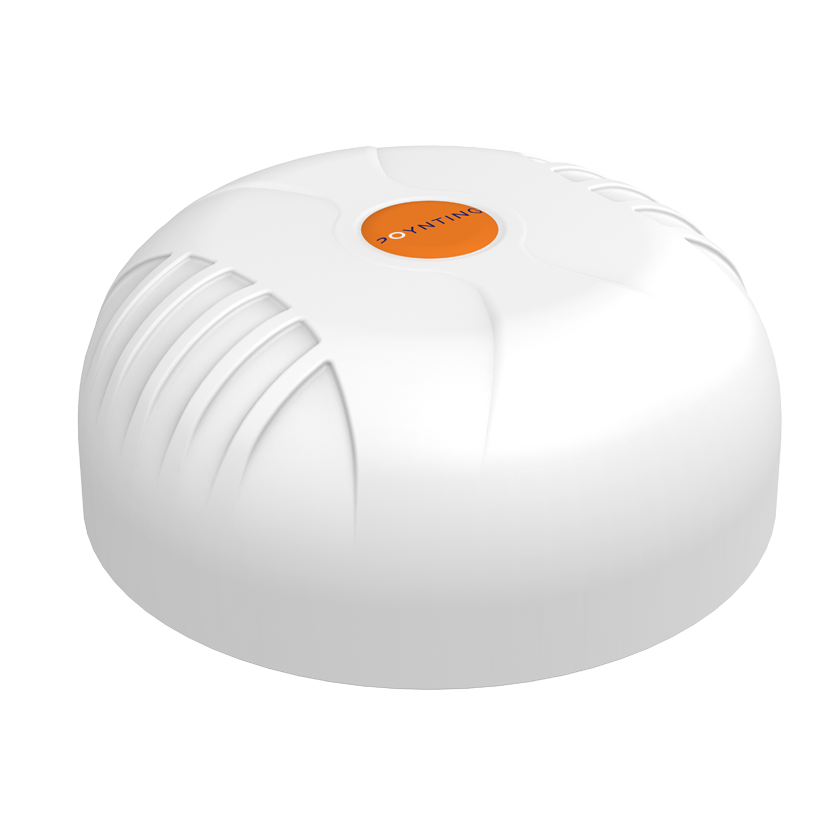

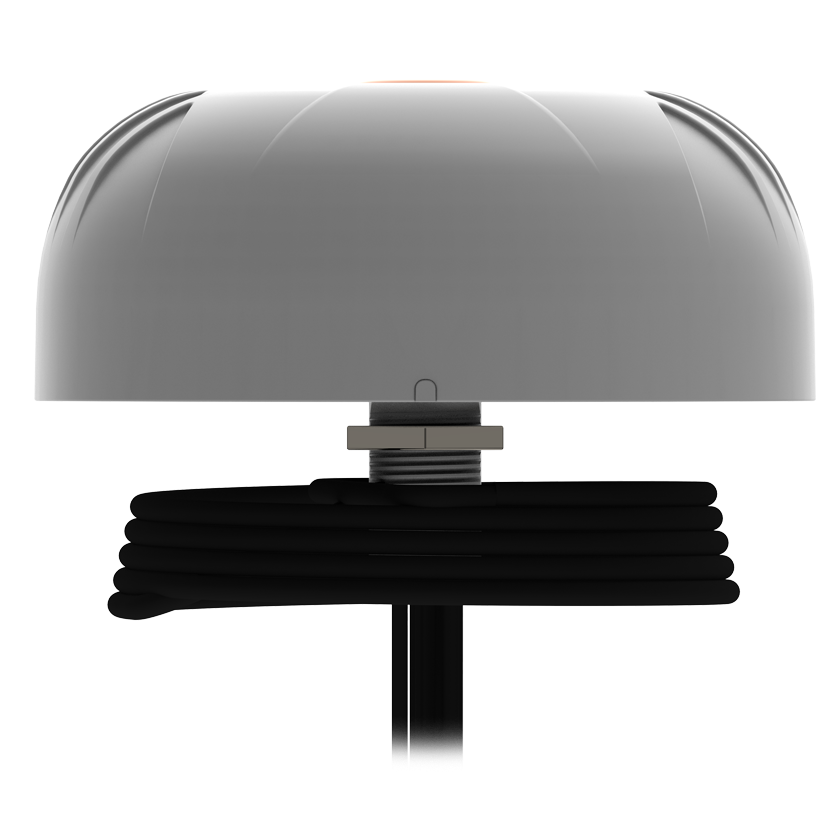

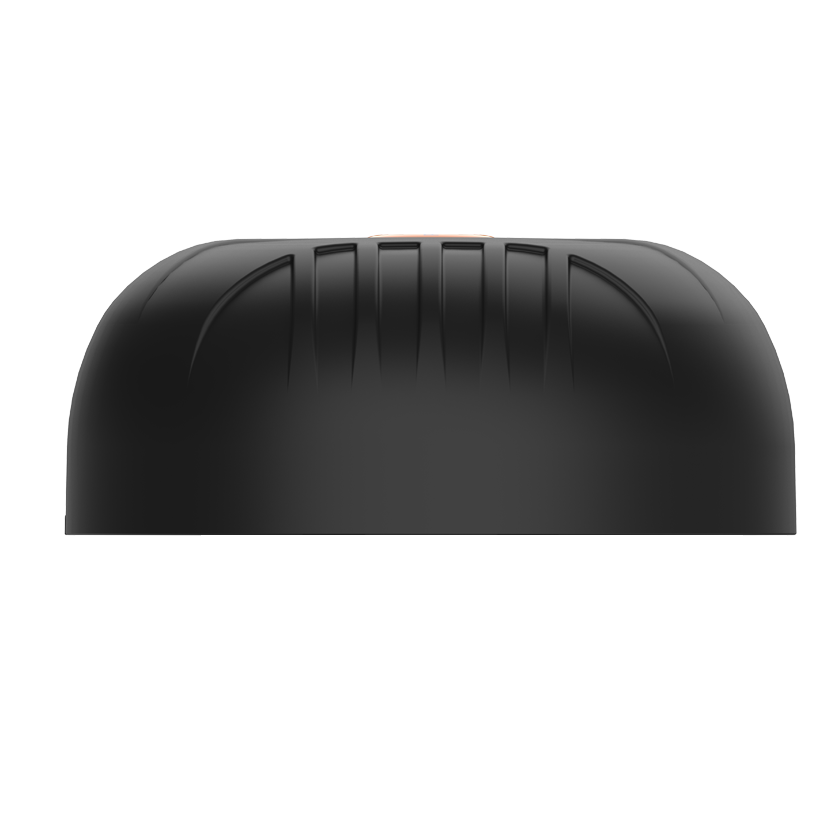

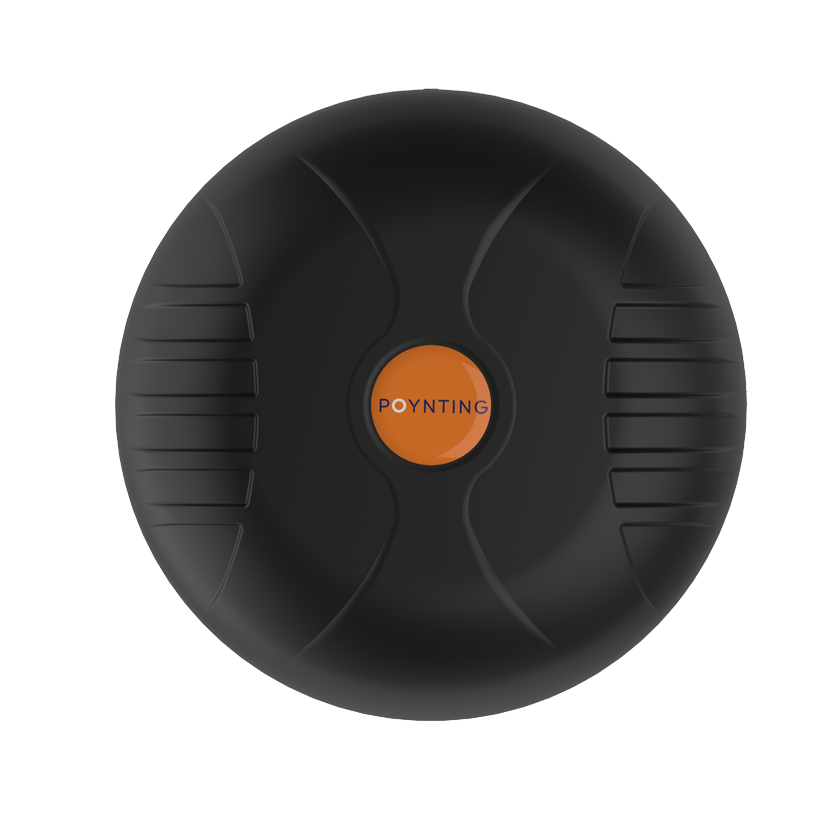

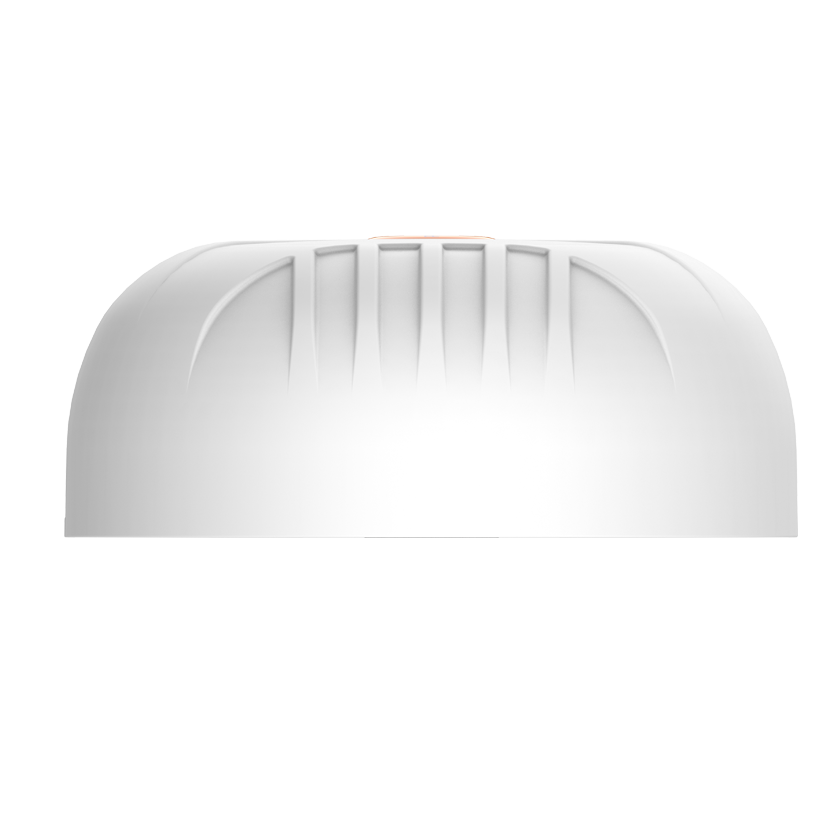

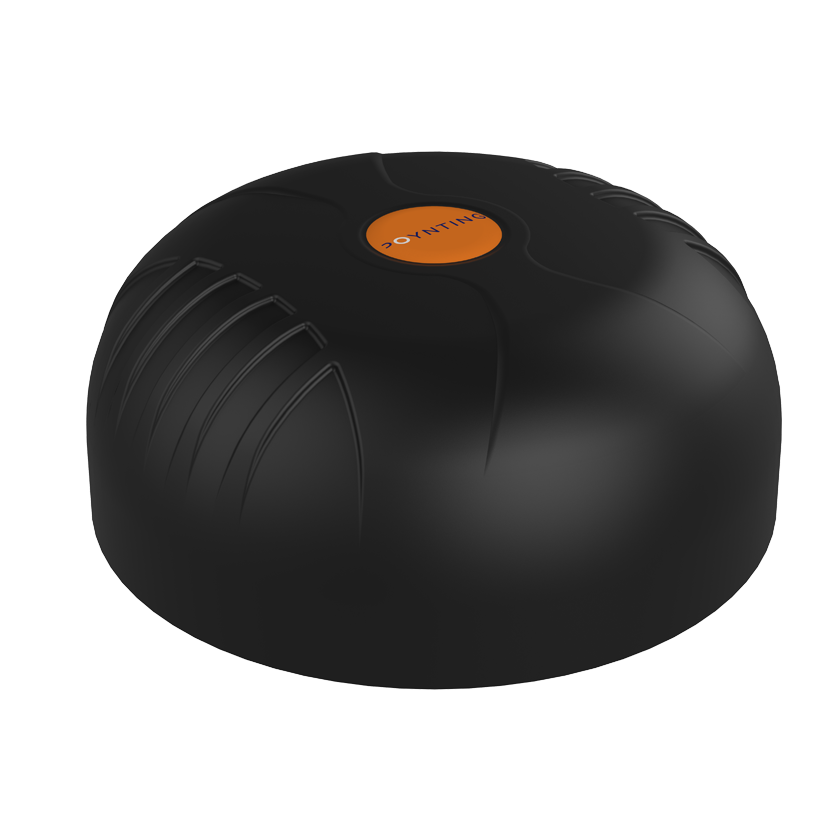

Poynting MiMo-4-V1 LTE, Wi-Fi, GPS 6dBi 5-9 in 1 vehicle antenna

  • The Poynting A-MIMO-4-V1-xx is a high performance omni-directional antenna that ensures you seamless, consistent and reliable 4G LTE/5G Internet connectivity. This high-performance transport and automation antenna consists of 2 to 9 antenna elements, depending on which version you take.

    High performance with multiple frequency

    Elements 2-4 are used for LTE MiMo functionality and provide an ultra wide frequency range from 617 to 6000 MHz. The cellular MIMO antennas cover all contemporary 4G/LTE bands and 5G bands for future-proof implementations. The ultra-wideband performance of the cellular antennas allows them to be used with different operators and technologies making the MIMO-4 ready for future cellular technologies up to 6 GHz for 5G applications.

    The Poynting-MIMO-4-xx also offers dual-band Wi-Fi antennas (Elements 5-8), with simultaneous 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 or 4x4 MIMO capabilities. In addition to the cellular and Wi-Fi antennas, the MIMO-4 also features a GPS/GLONASS antenna. This high-performance GPS antenna has a frequency range of 1575.42-1600 MHz and a gain of 21+ dBi.

    High performance with multiple frequencies

    Elements 2-4 are used for the LTE MiMo functionality and offer an ultra-wide frequency range of 617 to 6000 MHz. The cellular MIMO antennas cover all current 4G/LTE bands and 5G bands for future-proof deployments. The ultra-wideband performance of the cellular antennas allows them to be used across a variety of operators and technologies making the MIMO-4 ready for future cellular technologies up to 6 GHz for 5G applications.

  • The Poynting-MIMO-4-xx also offers dual-band Wi-Fi antennas (Elements 5-8), with simultaneous 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 or 4x4 MIMO capabilities. In addition to the cellular and Wi-Fi antennas, the MIMO-4 also has a GPS/GLONASS antenna. This high-quality GPS antenna has a frequency range of 1575.42-1600 MHz and a gain of 21+ dBi.

    Robust and weather resistant

    The Poynting A-MIMO-4 features an impact-resistant, rugged PC+ABS housing with an IP69K rating. Thanks to this strong housing, the MIMO 4 can withstand salt water, severe weather conditions, harsh environments and vandalism.

    Easy to mount

    The powerful omni-directional antenna is compact in size so it is not conspicuous or takes up a lot of space. In addition to its convenient size, the MIMO-4 is also easy to install on site through the various mounting options the antenna offers. With the included brackets, you can mount the Poynting MIMO-4 to a pole, wall or it can be taped to a roof.  There is no need to mount the antenna on a metal baseplate. In addition to the city ground options, you also have the option of magnetic mounting with the Magnetic Base Kit (MBK-003) and Marine mounting with the Marine Bracket (BRKT-37). These options are optional and are not included.

  • Model MIMO-4-15 MIMO-4-17 MIMO-4-19
    ports 5 7 9
    SISO/MIMO 2X2 MIMO/
    2X2 Wi-Fi
    4X4 MIMO/
    2X2 Wi-Fi
    4x4 MIMO
    C. Type RTK-031 RTK-031 RTK-031
    C length 2 m 2 m 2 m
    Connector SMA-male SMA-male SMA-male

  • Application areas

    The main application areas for the Poynting MIMO-4 are for commercial and industrial vehicles, marine, M2M and other IoT systems. For example, the A-MIMO-4-XX is ideal for automation and telemetry for buses, trucks and public safety vehicles. Agricultural and agricultural automation applications. Broadband cellular to Wi-Fi distribution for Marine/boats and, thanks to its compact size, the MIMO-4 is great for fast and stable Internet in the RV or campervan during your travels.
