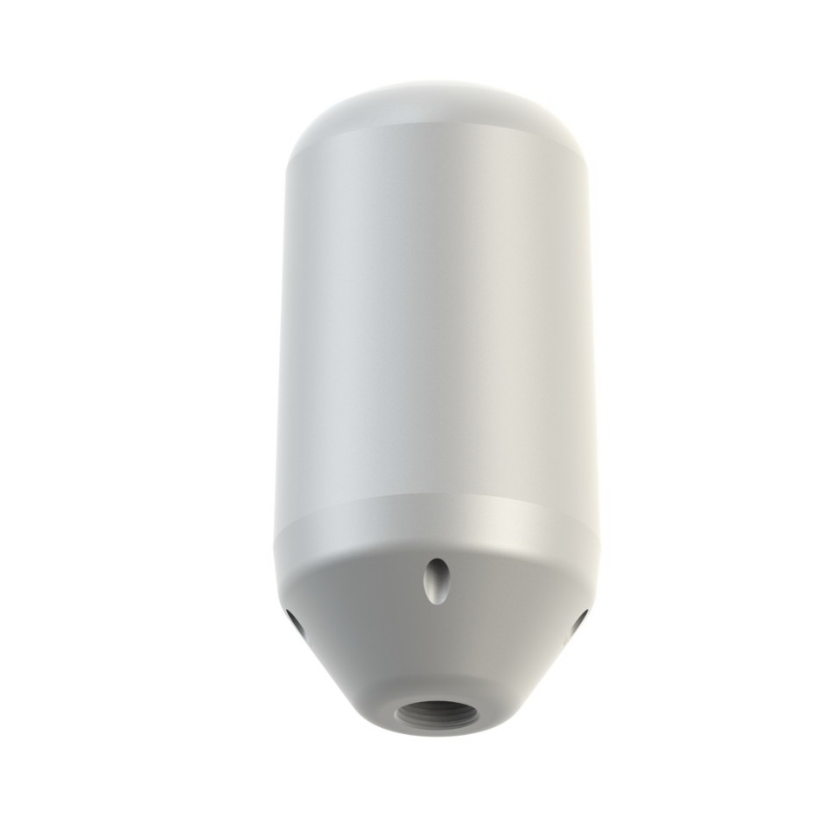

SCAN Iridium Passieve ONNI satcom antenna

The SCAN Iridium Passive Omni-directional antenna is designed for the frequency range: 1616-162.5. This antenna is suitable for marine and marine applications.

The SCAN Iridium Passive Omni-directional Marine antenna is, in combination with the right support (option), suitable for mast, railing and deck mounting. The antenna can be mounted on a mounting bracket with a 1 "-14NF wire end. The cable (optional) can be connected to an N-female connector at the bottom of the Iridium Passive Omni-directional antenna. With the Iridium Passive Omni-directional Antenna you obtain a lightweight L-band antenna, which is suitable for marine and marine applications.
Properties
- Frequency range 1616-1626.5 MHz
- L-band
- 1 "14NF assembly system
- For marine and maritime applications
- Connector N-female
- For Iridium GO
- Low loss radome

.price-ui--loading { display: block !important; opacity: 1 !important; }

96,80

Frequency	1616-1626.5 MHz
Bandwidth	10 MHz
Impedance	50 Ohm
VSWR	< 1.5
Polarization	Vertical
Gain	6 dB (Maritime), 2.1 dBic

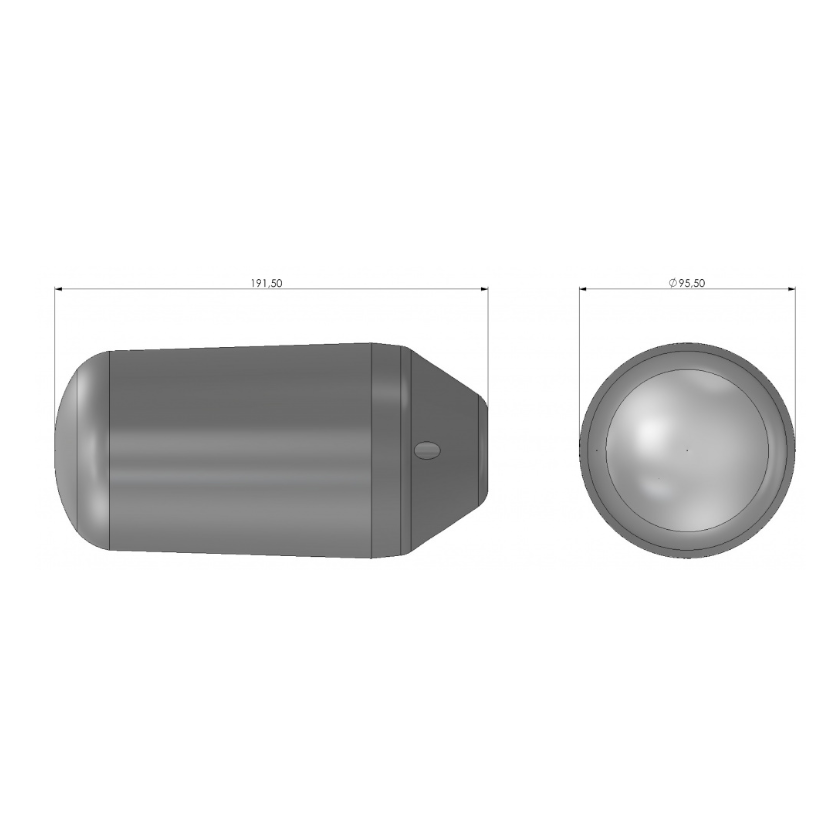

Height	that. 191.5 mm
Mounting	On any US-style mounting bracket with
Mounting place	1 "-14NF thread left (not supplied).
Assembly place	On a boat/vessel or vehicle on land
Material	Asa, luggage, PCB,
	Stainless steel 316 and brass
Operating temperature	-55°C to +70°C
Connector	N-female
Cable	No cable supplied
Degree of protection	IP66
