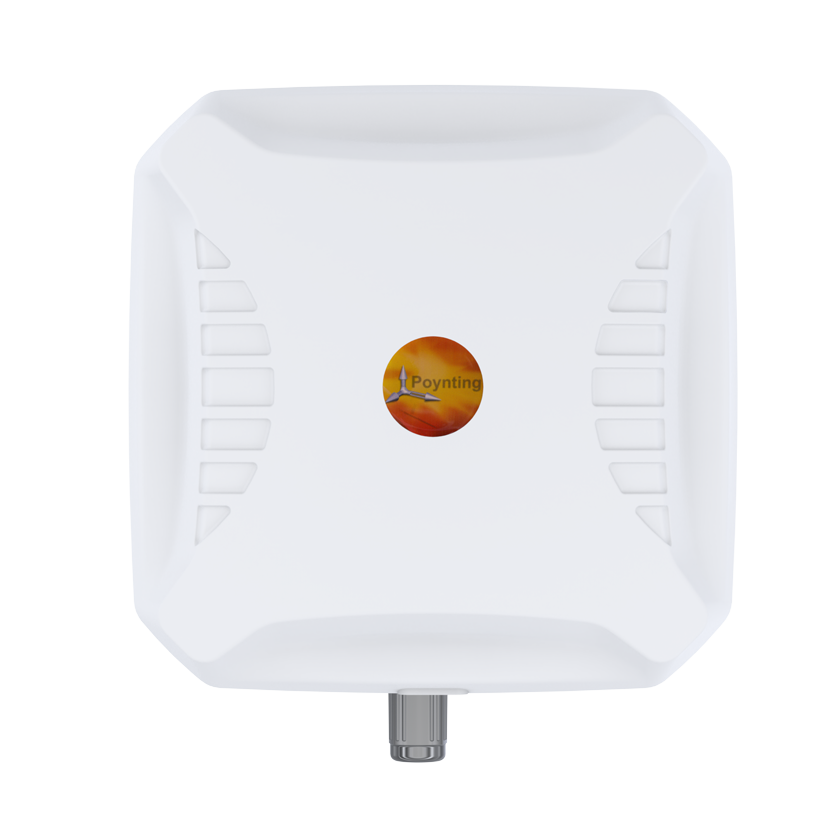

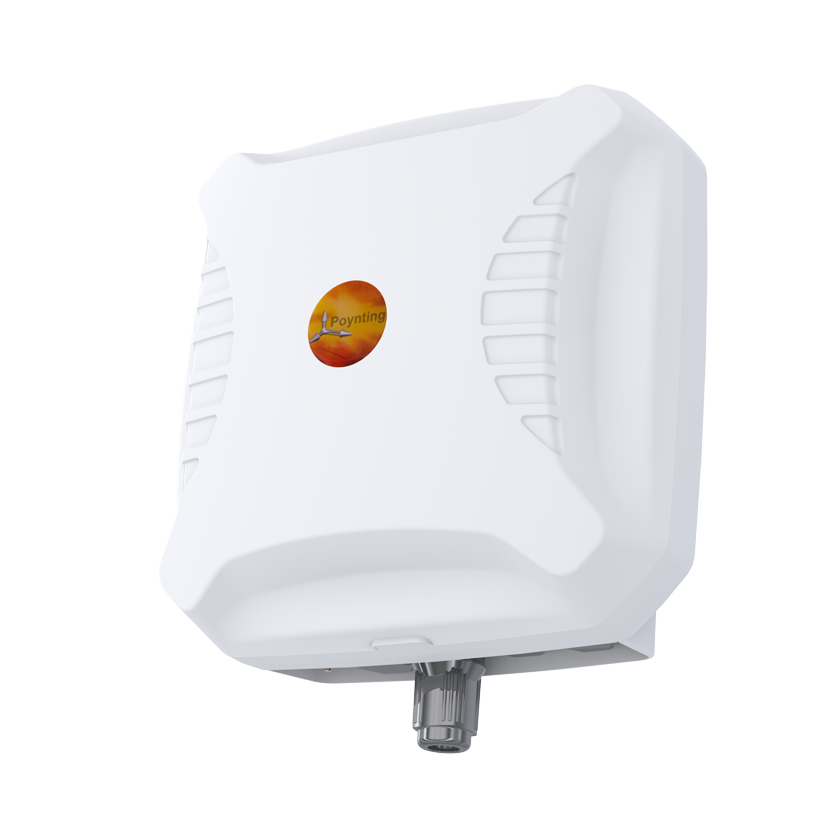

Poynting ePoynt EPNT-2* 4x4 Directional Antenna Enclosure 4G LTE/5G

  • The Poynting ePoynt EPNT-2 antenna enclosures are designed to integrate existing 4x4 MiMo routers or dual 2x2 MiMo routers to create a complete 4G LTE/5G internet solution for homes, offices and businesses. The ePoynt-2 is a directional antenna that has to be accurately aligned (+/- 30 deg) with the transmission tower of your provider.

    The ePoynt EPNT-2 contains four cross-polarized cellular antennas. Ttwo directional (directional) antennas with a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi.

    Superior MIMO performance

    With the Poynting ePoynt-EPNT-2* you are assured of reliable and consistent 4G LTE/5G internet connectivity. The EPNT-2 offers a variety of antennas in one router enclosure such as 4×4 5G/LTE MIMO and 2×2 dual band Wi-Fi. The directional 4G LTE/5G broadband antennas cover a frequency range of 617 to 4200 MHz, and have an excellent gain of up to 11 dBi across all frequencies.

    The dual band Wi-Fi antennas work on the following frequencies, namely 2.4 GHz, 5 GHz and 7.2 GHz. They have a peak gain of up to 7.5 dBi. In addition, the antenna elements in the housing are cross-polarized, which optimizes data throughput.

  •  Antenna overview
    Element LTE Wi-Fi Dual band
    ports Cell 1 & 2 Main
    Cell 1 & 2 Aux/Div
    1 & 2
    SISO/MIMO 4x4 MIMO 2x2 MIMO
    Frequencies (MHz) 617-4200 2400-2500, 5000-7200
    Max. strengthening 11 dBi 7 dBi
    Connector SMA female SMA female



    Due to short antenna cables there are hardly any attenuation losses. The routers can be supplied with power over a large distance (>100 m) via PoE (power over Ethernet). Mifi hotspot has various PoE solutions that are available at an additional cost.

    The router compartment has a size of 185 x 145 x 45 mm, so that 4G LTE / 5G routers from Celerway, Robustel 1520, Teltonika (X11, X12, X14 X50), Sierra Wireless  and Cradlepoint can be installed. (router is not included). For the compatible routers, see additional information.

    Fully protected

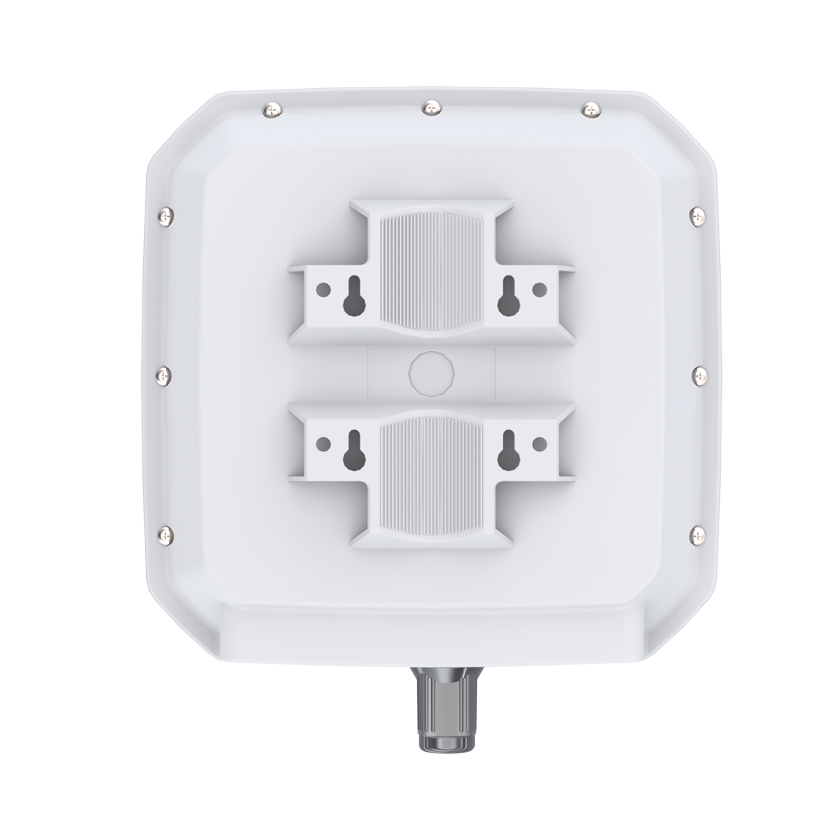

    The Poynting ePoynt-1 has an impact-resistant plastic housing (UV-stable ASA) and is resistant to salt water, severe weather conditions and vandalism. The antenna housing comes standard with mounting brackets for wall, window or mast mounting.
